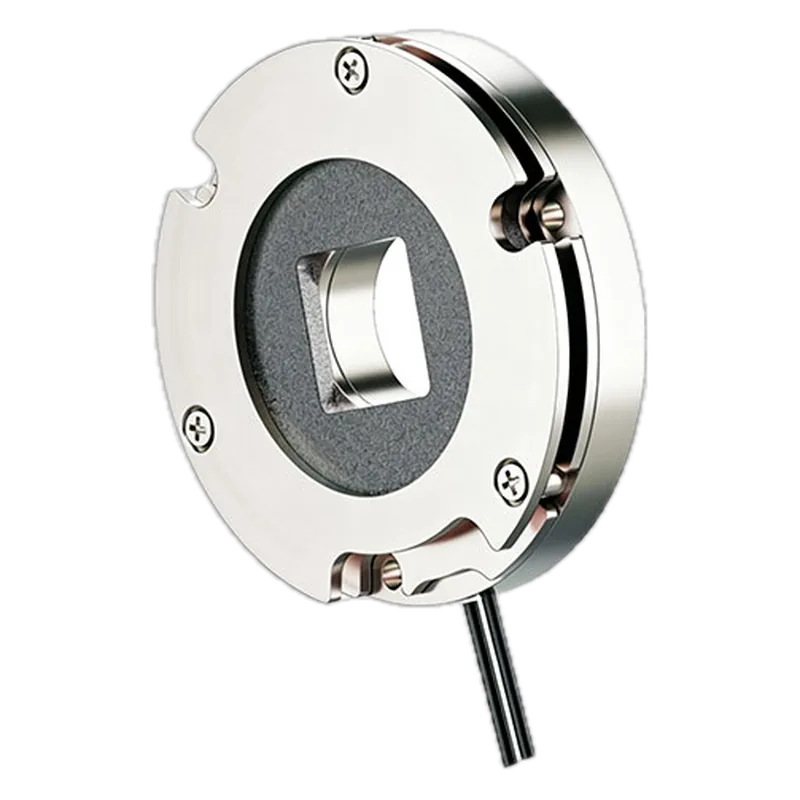

Ankoncn (AK Brake) ASF80 Servo Brake, 4 N·m
Ankoncn (AK Brake) · MPN ASF80 · Maglev ID ac-ankoncn-asf80
CN Maker in China, factory not confirmed unknown VERIFIED
AK Brake ASF standard servo-series ultra-thin electromagnetic brake, 4 N·m, 24 V, spline hub (0.2-0.5° hub backlash).
Specifications
| Holding torque | 4 N·m |
|---|---|
| Voltage | 24 VDC |
| Outer diameter | 68 mm (A) |
| Axial thickness | 27.45 mm (K) |
| Type | Electromagnetic power-off servo brake, spline hub; spring vs permanent-magnet principle not stated on page |
| Coil power | 8.3 W |
| Mass | 0.5 kg |
| Hub bore | 16 mm (d) |
Who makes it
MakerKunshan Ankong Development Equipment Co., Ltd. (昆山安控发展装备有限公司, AK Brake / Ankoncn)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Size code 05 in maker table. www.ankoncn.com redirects to akbrake.com. Data read from spec images (Chinese). |
Sources
- https://www.akbrake.com/product/780.htmlASF series page
- https://cdn.myxypt.com/c2c84672/26/06/77d9b326a4c72236570c6334b11828b82a63a39a.pngASF rating table image (size, torque, power, mass)
- https://cdn.myxypt.com/c2c84672/26/06/f21a27403d4e9f4c0f755712a1de6e80b594bd29.pngASF dimension table image (A, K, d)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
