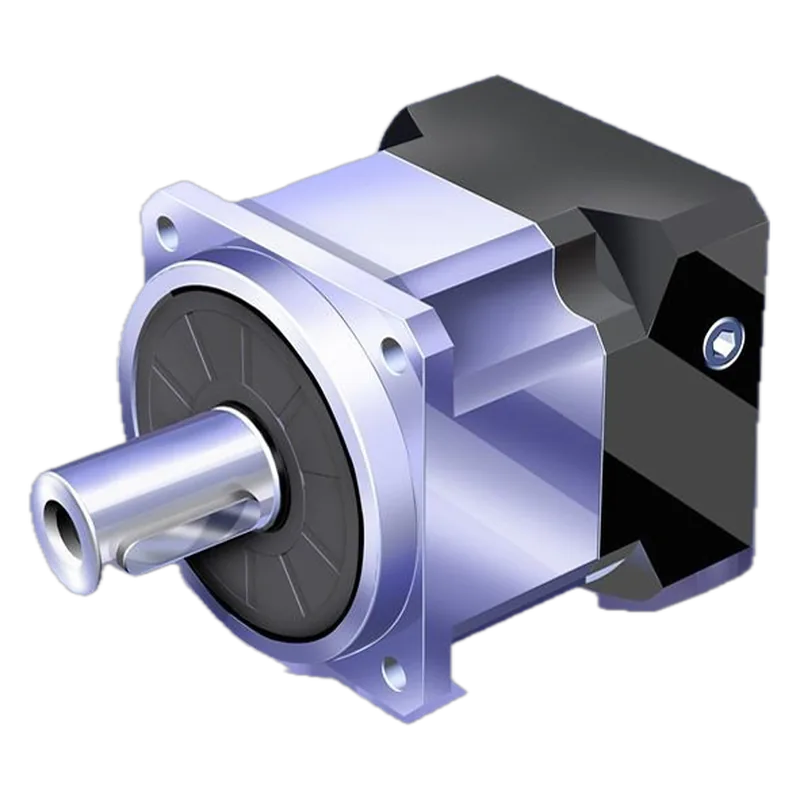

Apex Dynamics AB060 Helical Planetary Gearbox, 10:1
Apex Dynamics · MPN AB060-010-S1-P2 (motor adapter per order) · Maglev ID ac-apex-ab060-010
TW Maker in Taiwan, factory not confirmed unknown VERIFIED
60 mm helical planetary, 10:1 single stage; 40 N·m nominal, IP65.
Specifications
| Ratio | 10:1 |
|---|---|
| Nominal output torque T2N | 40 N·m |
| Backlash | P0 n/a / P1 ≤3 / P2 ≤5 arcmin |
| Frame size | 60 mm |
| Stages | 1 |
| Mass | 1.3 kg |
Who makes it
MakerApex Dynamics, Inc.
Based inTaiwan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Taiwanese maker with US subsidiary; page shows a $50 placeholder price, not used. |
Equivalents from other makers
Sources
- https://apexdynamicsusa.com/wp-content/uploads/2026/08/ababr-catalog.pdfAB performance table and ordering code
- https://apexdynamicsusa.com/product/ab-series-high-precision-planetary-gearboxes/product page
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
