Broadcom AEAT-9018-S06 18-bit Magnetic Encoder Module (6 mm shaft)
Broadcom · MPN AEAT-9018-S06 · Maglev ID ac-broadcom-aeat-9018-s06
US Maker in United States, factory not confirmed unknown VERIFIED

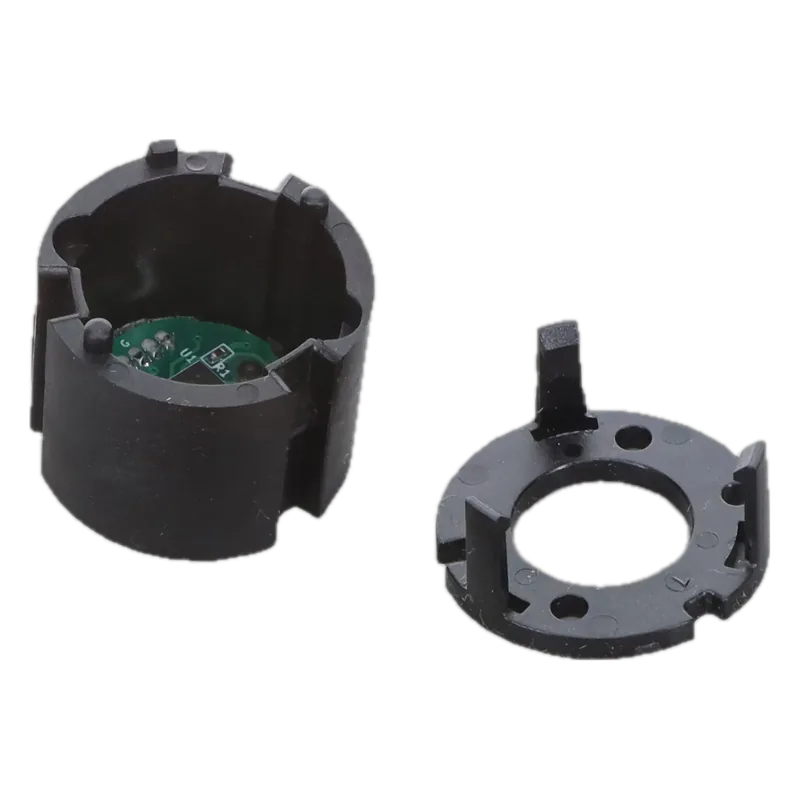

Base-plate + magnet-hub absolute magnetic encoder module for a 6 mm motor shaft, 18-bit SSI; Broadcom's current replacement line for the obsolete AEAT-6012.
Specifications
| Resolution | 18 bit (family 10 to 18 bit) |
|---|---|
| Accuracy | INL ±0.3° typ, ±0.8° max |
| Max speed | 12,000 rpm mechanical speed |
| Interface | SSI (3-wire) |
| Form | on-axis module: base plate + magnet hub for 6 mm shaft (open center), terminal pins |
| Sensing | magnetic (Hall) |
| Supply | 5 V (4.5 to 5.5 V) |
| Bore / ring ID | n/a (fits 6 mm shaft via hub) |
| Operating temp | -40 °C to +125 °C |
