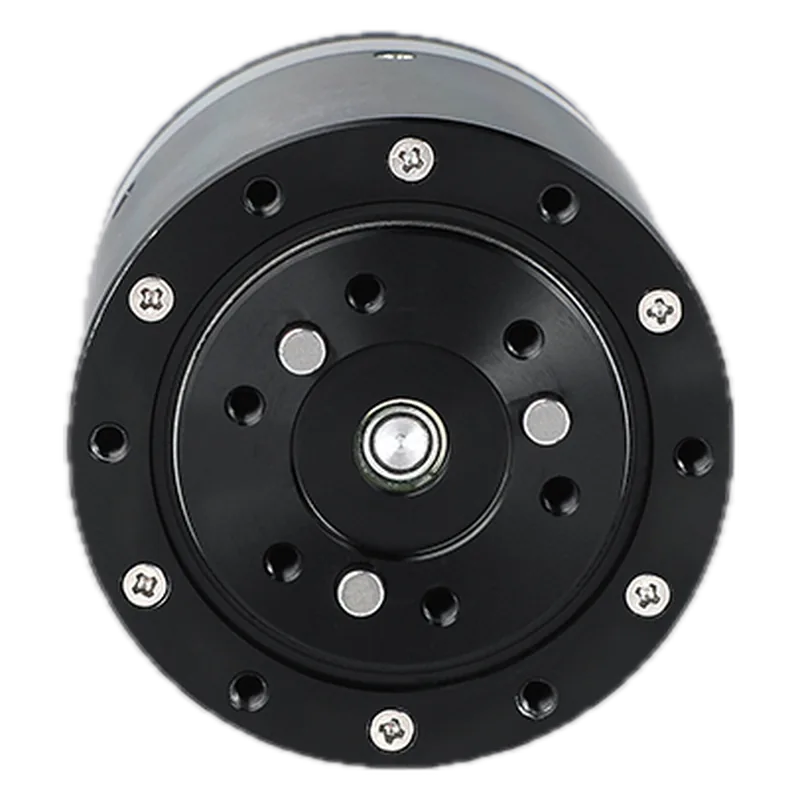

CubeMars AK45-36 V3.0 KV80 Robotic Actuator
CubeMars · MPN AK45-36 V3.0 KV80 · Maglev ID ac-cubemars-ak45-36-v3
CN Maker in China, factory not confirmed unknown VERIFIED
Small high-ratio (36:1) integrated planetary joint for low-speed, high-torque small joints such as fingers-to-wrist drives and small arm elbows.
Specifications
| Peak torque | 24 N·m |
|---|---|
| Rated torque | 8 N·m |
| Gear ratio | 36:1 planetary |
| Voltage | 24 V rated |
| Mass | 349 g |
| Interface | CAN (plus UART for setup); SERVO and MIT modes |
Who makes it
MakerCubeMars (brand of Sanrui Intelligent, Nanchang)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Stock not stated on the CubeMars product page. |
Equivalents from other makers
Sources
- https://www.cubemars.com/product/ak45-36-v3-0-kv80-robotic-actuator.htmlspecs + price + stock
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
