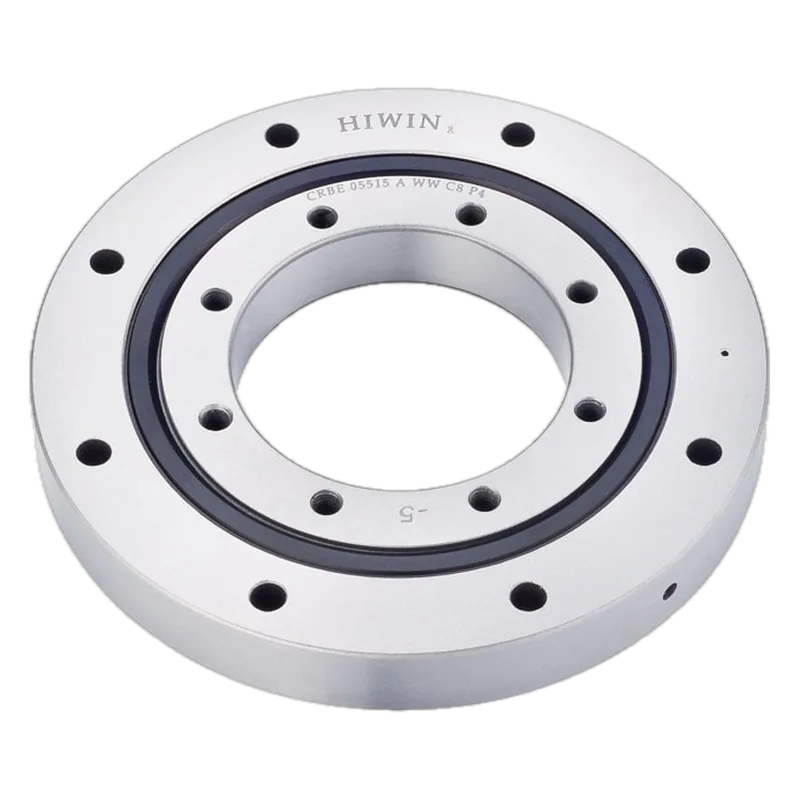

HIWIN CRBE 05515 Crossed Roller Bearing (55 x 120 x 15 mm)
HIWIN · MPN CRBE05515AWWC1P4 (sealed) / CRBE05515ANNC1P4 (open) · Maglev ID ac-hiwin-crbe05515
TW Maker in Taiwan, factory not confirmed unknown VERIFIED
HIWIN's RU85-size crossed roller bearing with mounting holes, stocked in the US at HIWIN's Illinois headquarters.
Specifications
| Bore | 55 mm |
|---|---|
| Outside diameter | 120 mm |
| Width | 15 mm |
| Basic dynamic load rating C | 21.7 kN |
| Type | Crossed roller, integral rings with mounting holes (CRBE type, RU85 size) |
| Basic static load rating C0 | 30.6 kN |
Who makes it
MakerHIWIN Technologies Corp.
Based inTaiwan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
43.3%
TW
10%
VN
18.3%
IN
15.8%
JP
12.5%
KR
12.5%
DE
10%
MX
15.8%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.50.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://hiwin.com/wp-content/uploads/crossed_roller_bearings-e-1.pdfHIWIN crossed roller catalog: d, D, B, C, C0
- https://www.hiwin.com/crossed-roller-bearings.htmlseries overview, images
- https://hiwin.com/products/in-stock-crossed-roller-bearings/in-stock list (Huntley, IL)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
