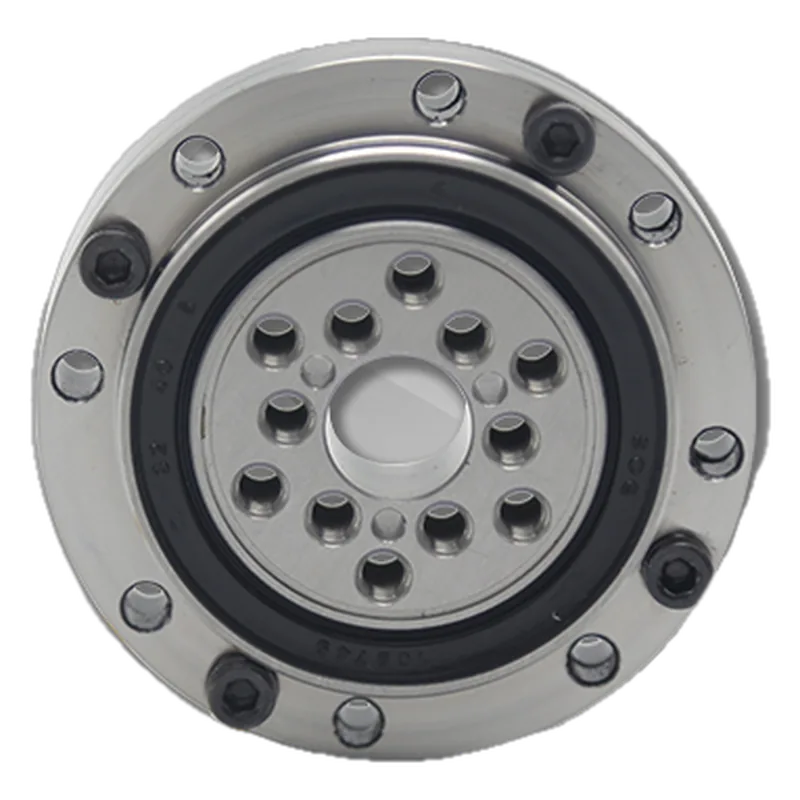

HONB CSG(CSF)-20 Harmonic Reducer Output Crossed Roller Bearing
HONB (Luoyang Hongyuan) · MPN CSG(CSF)-20 · Maglev ID ac-honb-csg-20-bearing
CN Maker in China, factory not confirmed unknown VERIFIED
Replacement output crossed roller bearing sized for size-20 CSG/CSF strain-wave gear units, for founders building their own harmonic joint housing.
Specifications
| Bore | 14 mm |
|---|---|
| Outside diameter | 70 mm |
| Width | 13.5 mm |
| Basic dynamic load rating C | 8.5 kN |
| Type | Crossed roller, harmonic reducer output bearing (CSG/CSF size 20) |
| Basic static load rating C0 | 13.4 kN |
Who makes it
MakerLuoyang Hongyuan Bearing Technology Co., Ltd.
Based inChina
RoleFactory
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
43.3%
TW
10%
VN
18.3%
IN
15.8%
JP
12.5%
KR
12.5%
DE
10%
MX
15.8%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.50.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.honb.com/products_show/10.htmlCSG/CSF bearing table (d, D, B, Cr, Cor), images
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
