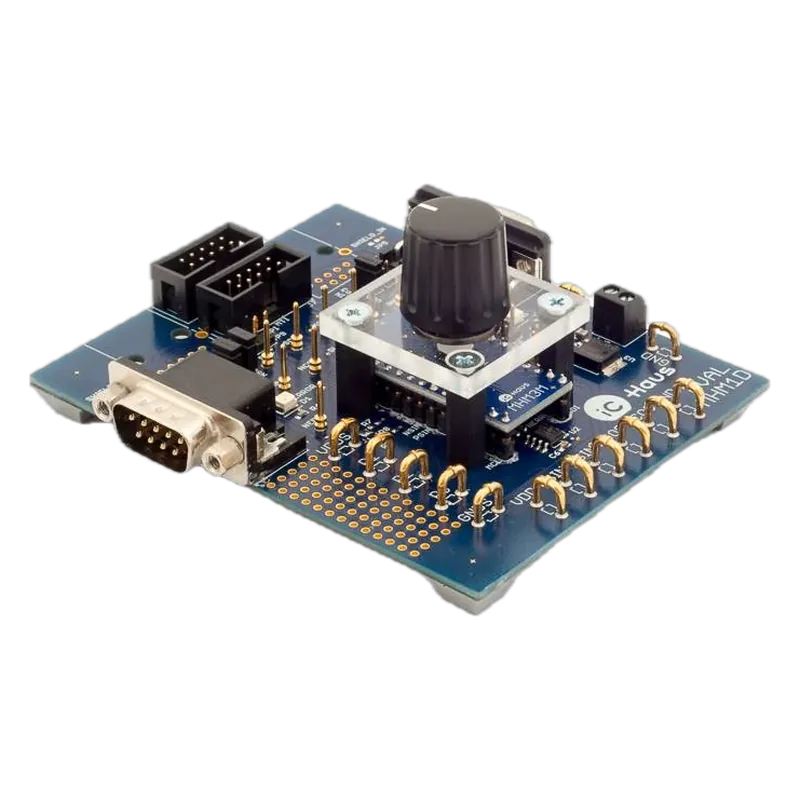

iC-Haus iC-MHM EVAL MHM1D Evaluation Board
iC-Haus · MPN iC-MHM EVAL MHM1D · Maglev ID ac-ichaus-ic-mhm-eval-mhm1d
DE Maker in Germany, factory not confirmed unknown VERIFIED
Maker evaluation board for the iC-MHM BiSS/SSI Hall encoder IC.
Specifications
| Resolution | 14-bit (0.02°) at up to 10,000 rpm; 12-bit at 80,000 rpm |
|---|---|
| Accuracy | Absolute angular accuracy ±0.35° with calibrated signal conditioning |
| Max speed | 84,000 rpm magnet rotating speed (14-bit tracking to 10,000 rpm) |
| Interface | BiSS C (BP1/BP3); SSI; SPI optional; ABZ; 1 Vpp sin/cos; RS-422 transceiver; SSI multiturn input |
| Form | eval / breakout board (iC-MHM evaluation board) |
| Sensing | Hall (quad array, on-axis) |
| Supply | 4.5–5.5 V |
| Bore | n/a |
| Operating temp | -40 to +125 °C |
Who makes it
MakeriC-Haus
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://de-shop.ichaus.com/ic-mhm-eval-mhm1d.htmliC-Haus EU webshop: 'Evaluation Board iC-MHM', price, stock
- https://www.ichaus.de/product/ic-mhm/chip specs (see iC-MHM IC record)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
