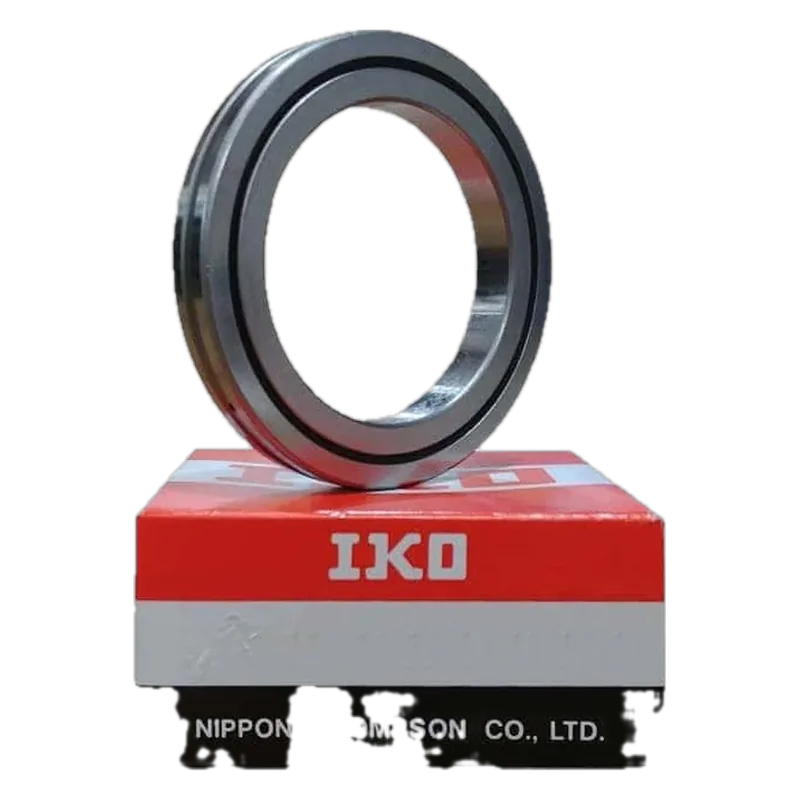

IKO CRBH3510 High-Rigidity Crossed Roller Bearing (35 x 60 x 10 mm)
IKO · MPN CRBH3510A (AT1 open / AUU sealed) · Maglev ID ac-iko-crbh3510
JP Maker in Japan, factory not confirmed unknown REPORTED
IKO's thin one-piece crossed roller bearing, a common wrist and forearm output bearing and the benchmark for Chinese CRBH copies.
Specifications
| Bore | 35 mm |
|---|---|
| Outside diameter | 60 mm |
| Width | 10 mm |
| Basic dynamic load rating C | 7.9 kN |
| Type | Crossed roller, integral inner and outer rings, high rigidity (CRBH type) |
| Basic static load rating C0 | 9.13 kN |
Who makes it
MakerNippon Thompson Co., Ltd. (IKO)
Based inJapan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
43.3%
TW
10%
VN
18.3%
IN
15.8%
JP
12.5%
KR
12.5%
DE
10%
MX
15.8%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.50.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Quality Bearings Online shows a '$' price without a currency code (likely CAD); not recorded. |
Equivalents from other makers
Sources
- https://www.qualitybearingsonline.ca/crbh3510auu-iko-high-rigidity-sealed-crossed-roller-bearingsd, D, B, C, C0, stock, image (CRBH3510AUU)
- https://www.acorn-ind.co.uk/p/iko/cross-roller-bearing/crbh3510at1-iko/USD price CRBH3510AT1, origin JP
- https://kscdirect.com/itemDetail/9554834/iko-crbh3510auuc1-metric-series-high-rigidity-crossed-roller-bearing-35-mCRBH3510AUUC1 dimensions, ships 1-2 business days
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
