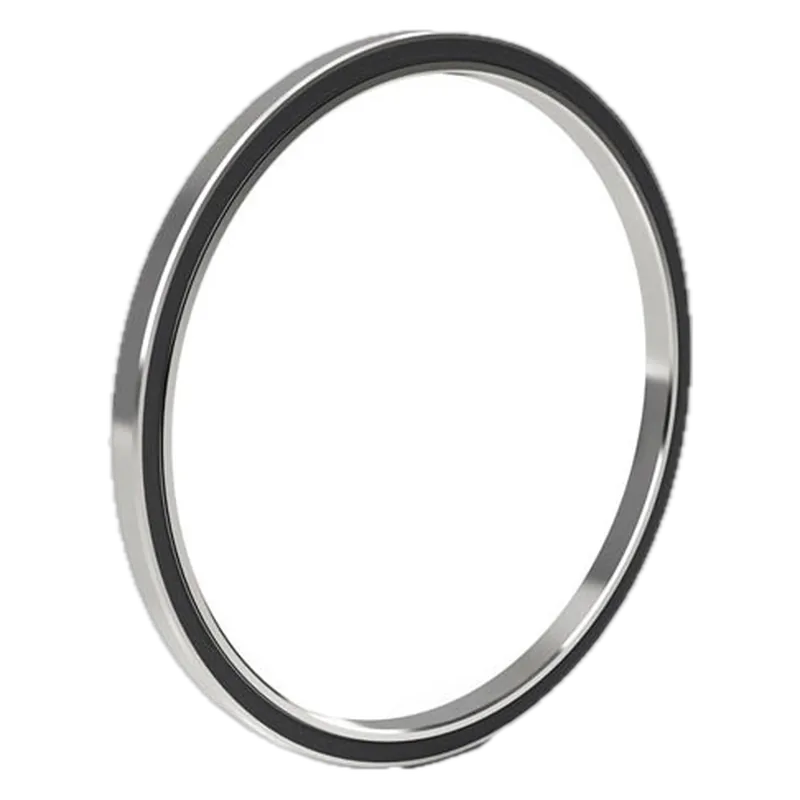

Kaydon Reali-Slim JA020XP0 Sealed Four-Point Contact Bearing
Kaydon (SKF) · MPN JA020XP0 · Maglev ID ac-kaydon-ja020xp0
US Maker in United States, factory not confirmed unknown REPORTED
Sealed, grease-packed version of the 2 in bore Reali-Slim four-point bearing, picked when the joint has no separate seal.
Specifications
| Bore | 50.8 mm |
|---|---|
| Outside diameter | 63.5 mm |
| Width | 6.35 mm |
| Type | Four-point contact (Type X), sealed both sides (NBR), grease-packed |
| Material | AISI 52100 rings and balls; stamped brass cage |
| Radial dynamic load | 2.29 kN |
Who makes it
MakerKaydon Bearing Solutions (SKF Group)
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
46.5%+?
TW
10%+?
VN
21.5%+?
IN
19%+?
JP
12.5%+?
KR
12.5%+?
DE
10%+?
MX
19%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.10.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
