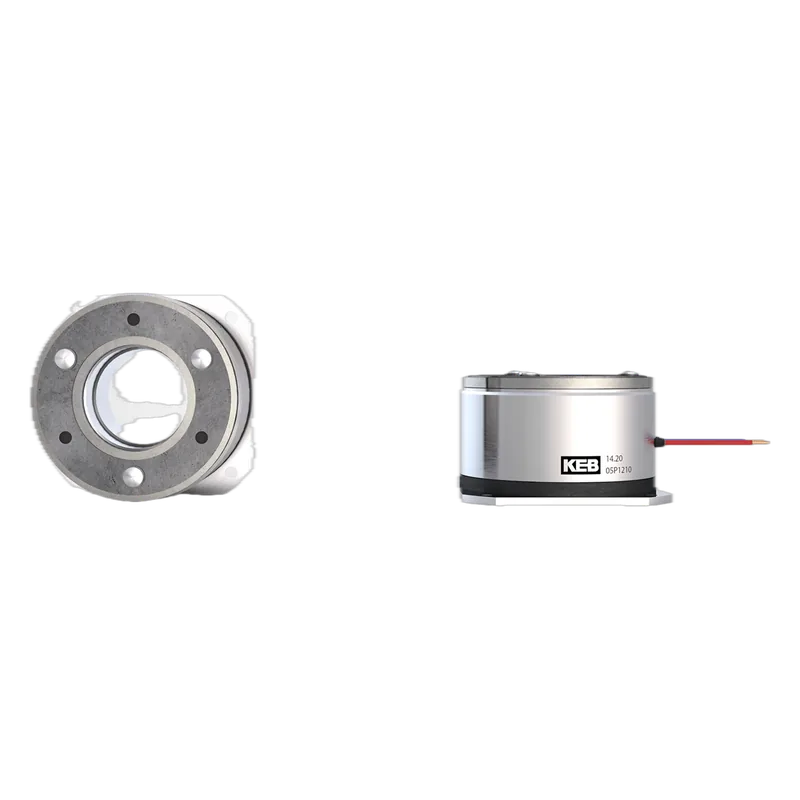

KEB COMBIPERM P1 Size 07 Permanent Magnet Brake, 24 N·m
KEB · MPN COMBIPERM P1 size 07 (07P1) · Maglev ID ac-keb-combiperm-p1-07
DE Maker in Germany, factory not confirmed unknown VERIFIED
KEB COMBIPERM P1 standard permanent-magnet safety brake size 07: 24 N·m rated, 24 V standard, backlash-free, no residual torque when energised.
Specifications
| Rated torque M2 | 24 N·m (min. 15 N·m at 120 °C) |
|---|---|
| Voltage | 24 VDC standard (other voltages per technic note) |
| Outer diameter | 100 mm (round flange, variant 100; magnet body M 90 mm) |
| Axial length | 34.7 mm (L, version without hub neck) |
| Type | Permanent-magnet power-off brake, backlash-free |
| Coil power | 24 W |
| Max hub bore | 25 mm |
Who makes it
MakerKEB Automation KG
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Rated torque reached after run-in of friction partners. Datasheet links on keb-automation.com are expiring secure-download tokens, so none is stored. |
Sources
- https://www.keb-automation.com/products/brakes-clutches/permanent-magnet-brakes-and-clutches/standard-permanent-magnet-brake-combiperm-p1P1 technical data tables (torque, power, bore, flange size, M, L)
- https://www.keb-automation.com/products/brakes-clutches/permanent-magnet-brakes-and-clutches/standard-permanent-magnet-brake-combiperm-p1technic note ti_bc_tn-p1-data-00001_en (secure-download link from this page; per-voltage coil data)
- https://www.kebamerica.com/products/permanent-magnet-brakes/KEB America permanent magnet brake page
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
