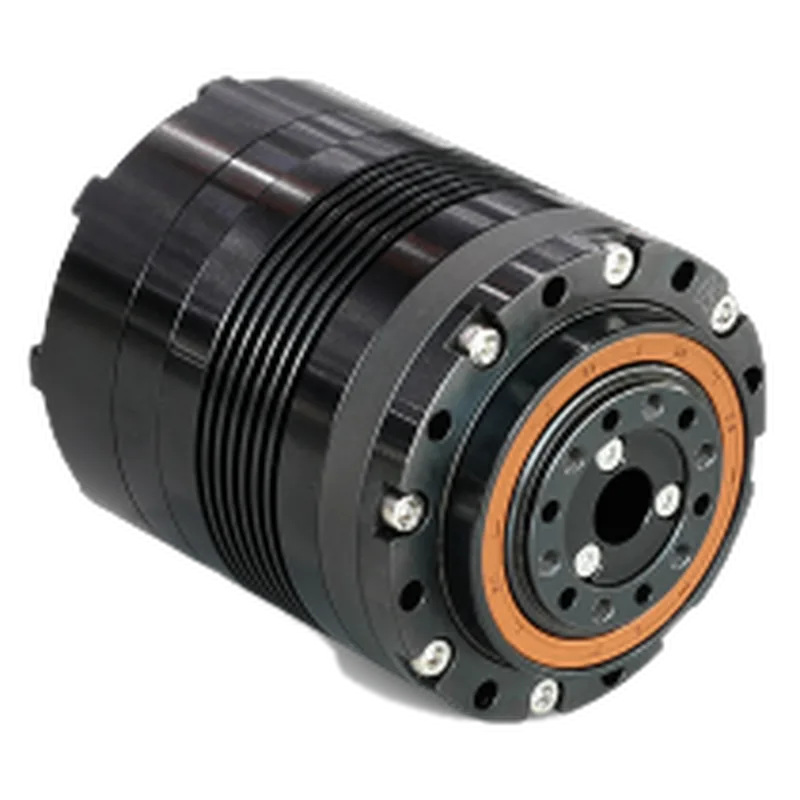

Kinco iFMH60H Hollow Rotary Joint Module (100:1)
Hollow-bore humanoid rotary joint (frameless torque motor, precision gearbox, 19-bit absolute encoder and drive in one housing) from a listed Chinese servo maker.
Specifications
| Peak torque | 71 N·m maximum momentary; 37 N·m peak start-stop |
|---|---|
| Rated torque | 27 N·m |
| Gear ratio | 100:1 (gear type not stated) |
| Voltage | 48 VDC rated; 20-72 VDC input range |
| Mass | 650 g |
| Interface | unknown |
| Encoder | Absolute, 19-bit |
| Size | Φ62 x 76 mm, Φ8.5 mm bore |
Who makes it
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Maker spec table does not state the fieldbus; sold through Kinco sales contact, no public price. |
Sources
- https://www.kincoautomation.com/product/robot/273maker spec table for iFMH55H/60H/70H/80H, photos
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
