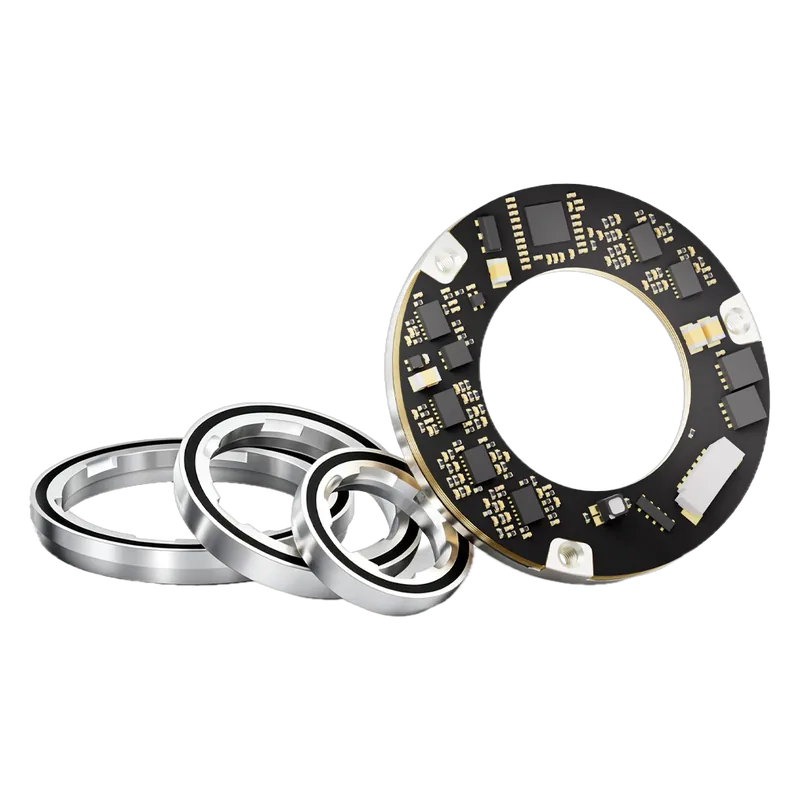

KingKong TPB Series Robot Joint Torque Triple Magnetic Encoder
Three 24-bit magnetic encoders that give motor angle, output angle and joint torque (via a co-designed torque disc) in one hollow assembly; for joints that want torque sensing without a strain-gauge sensor.
Specifications
| Resolution | three 24 bit absolute outputs |
|---|---|
| Accuracy | ±0.01° angle; torque ≤1 %FS |
| Max speed | unknown |
| Interface | unknown (page lists three 24-bit absolute outputs) |
| Form | off-axis ring kit: hollow triple encoder + customer-designed torque output disc |
| Sensing | magnetic (type not stated) |
| Supply | unknown |
| Bore / ring ID | unknown (hollow; sized per joint) |
Who makes it
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Works with
Sources
- https://www.kingkong.tech/encoder/TPBseries page: 24-bit, ±0.01°, torque ≤1 %FS, ≥1 kHz response, image
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
