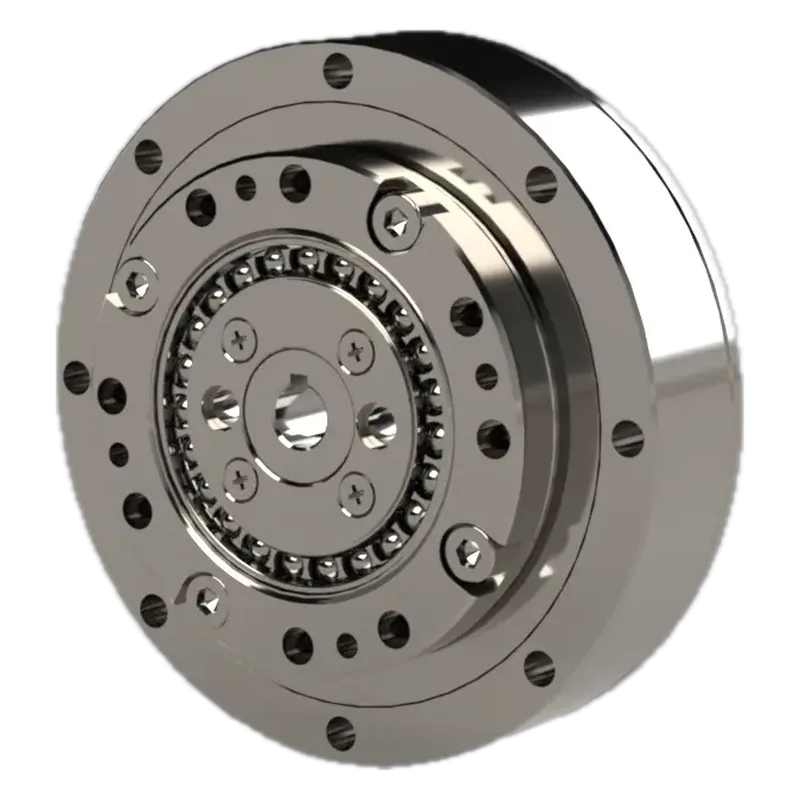

Leaderdrive LHS-17-100 Hat-Type Strain-Wave Reducer
Leaderdrive · MPN LHS-17-100 · Maglev ID ac-leaderdrive-lhs-17-100
CN Maker in China, factory not confirmed unknown VERIFIED
Size-17 100:1 hat-type (silk-hat) harmonic reducer with a large through-bore option for routing cables through a robot joint.
Specifications
| Ratio | 100:1 |
|---|---|
| Rated torque | 24 N·m (table rated input 3,500 rpm) |
| Peak torque (repeated / momentary) | 54 N·m repeated (start/stop) / 110 N·m momentary |
| Backlash | ≤10 arcsec max |
| Outer diameter | unknown |
| Hollow shaft | yes (hat type; large through-bore wave generator option) |
Who makes it
MakerLeaderdrive (苏州绿的谐波传动科技股份有限公司)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40%
TW
10%
VN
15%
IN
12.5%
JP
12.5%
KR
12.5%
DE
10%
MX
12.5%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8483.40.50.10 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Leaderdrive lists 3,500 rpm rated input speed; torque values match Harmonic Drive tables rated at 2,000 rpm, so check the rating basis before comparing. |
Sources
- http://www.leaderdrive.com/product/4.htmlLHS table: size 17, ratio 100 torques and backlash; hollow-bore description
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
