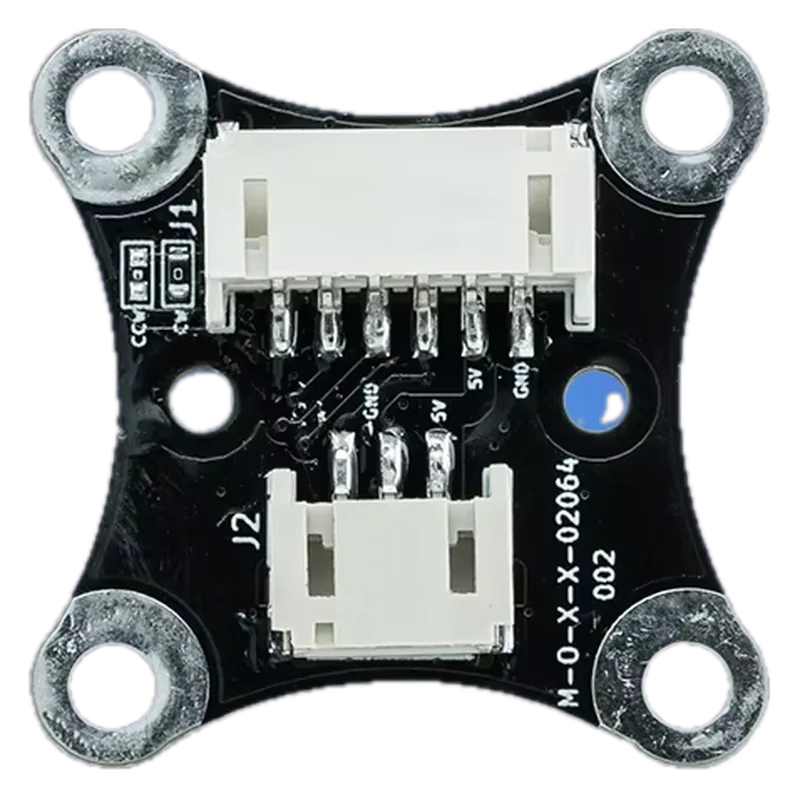

Makerbase MKS AS5047 V1.0 Magnetic Encoder Board for SimpleFOC
Makerbase (MKS) · MPN MKS AS5047 V1.0 · Maglev ID ac-makerbase-mks-as5047-v1
CN Maker in China, factory not confirmed unknown REPORTED
AS5047P breakout from Makerbase, the Shenzhen board maker behind many SimpleFOC kits; a cheap 14-bit motor-side encoder for hobby and research joints.
Specifications
| Resolution | 14 bit core (AS5047P) |
|---|---|
| Accuracy | AS5047P INL ±0.8° at 25 °C optimum magnet placement, ±1° over temp (IC datasheet) |
| Max speed | 28,000 rpm (AS5047P IC rating) |
| Interface | SPI; ABI; UVW; PWM (AS5047P outputs) |
| Form | eval / breakout board: AS5047P breakout board for SimpleFOC |
| Sensing | Hall (on-axis) |
| Supply | 3.3 V or 5 V (AS5047P) |
| Bore / ring ID | n/a |
Who makes it
MakerMakerbase (Shenzhen Makerbase Technology)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.aliexpress.us/item/3256802328847883.htmlMakerbase Official Store listing: variant MKS AS5047 V1.0 price, image
- https://www.infineon.com/row/public/documents/24/49/infineon-as5047p-datasheet-en.pdfAS5047P IC datasheet: INL, speed, interfaces
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
