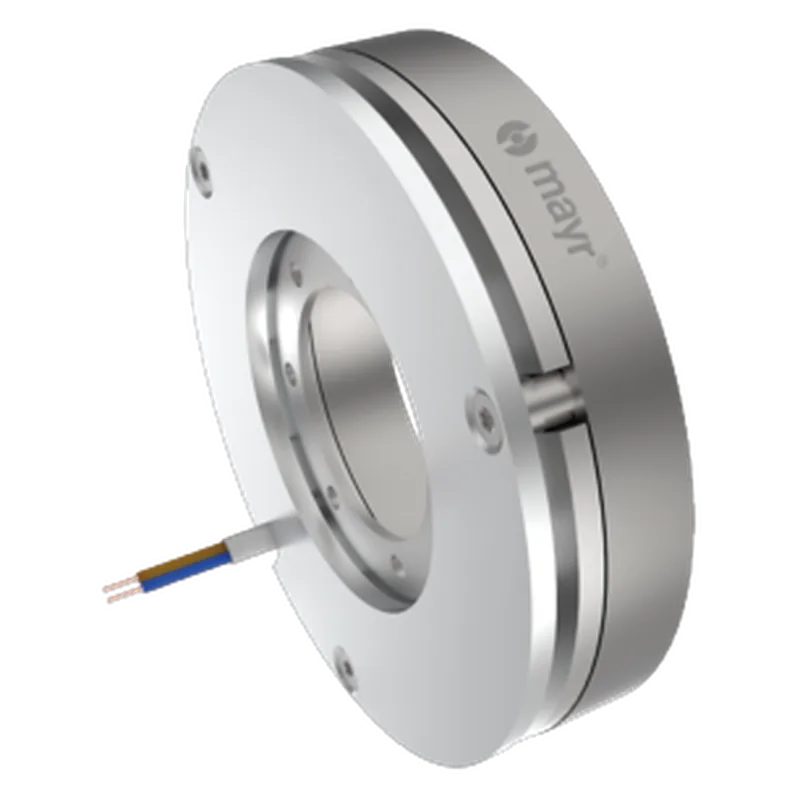

mayr ROBA-servostop Cobot Brake, Size 100 (9 Nm)
mayr · MPN ROBA-servostop Cobot size 100 · Maglev ID ac-mayr-roba-servostop-cobot-100
DE Maker in Germany, factory not confirmed unknown VERIFIED
Western benchmark: spring-applied safety brake built for lightweight and collaborative robot joints, with a hollow throughway.
Specifications
| Holding torque | 9 Nm (nominal braking torque) |
|---|---|
| Voltage | 24 VDC overexcitation / 8 VDC hold |
| Outer diameter | 108 mm (H) |
| Axial thickness | 22.4 mm (L) |
| Type | Spring-applied, power-off, hollow shaft |
Who makes it
MakerChr. Mayr GmbH + Co. KG
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.mayr.com/en/service/product-configurator/brakes/roba-servostop-cobot~40645configurator size table (size 100: 9 Nm, H 108 mm, L 22.4 mm, throughway d1 47 mm, 24/8 VDC)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
