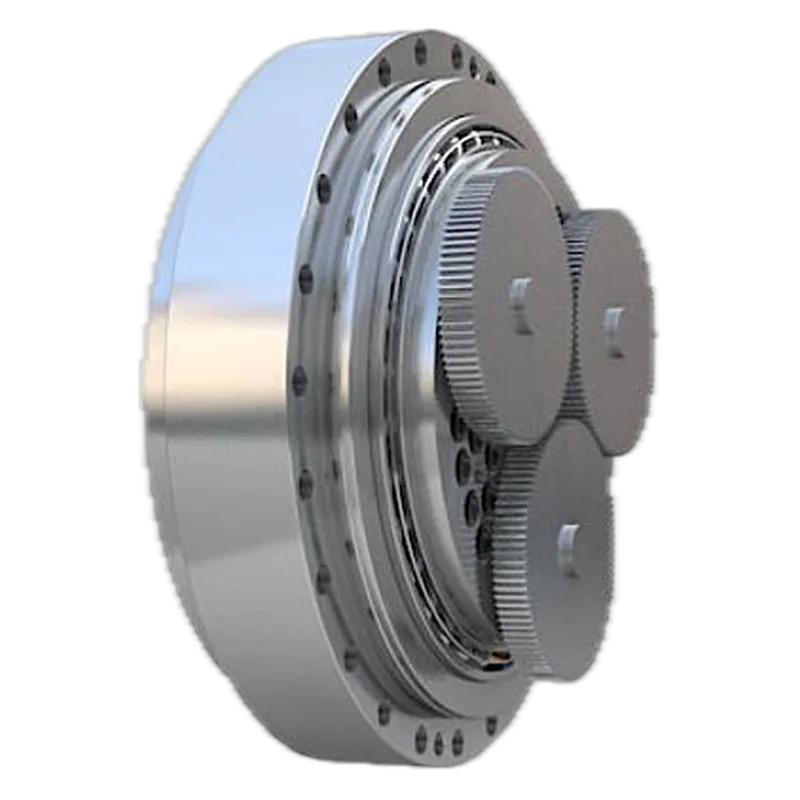

Nabtesco RV-80N Compact RV Reducer (Component Set)
Nabtesco · MPN RV-80N (ratio to select) · Maglev ID ac-nabtesco-rv-80n
JP Maker in Japan, factory not confirmed unknown VERIFIED
Benchmark RV reducer for heavy base and shoulder joints; 784 N·m rated, 189 mm OD.
Specifications
| Ratio | 41 / 81 / 101 / 129 / 141 / 171 |
|---|---|
| Rated torque | 784 N·m |
| Allowable accel./decel. torque | 1960 N·m |
| Hysteresis loss | <1 arcmin (Nabtesco quotes hysteresis loss) |
| Outer diameter | 189 mm |
| Output side | Solid shaft (as listed by maker) |
| Emergency stop torque | 3,920 N·m |
| Torsional rigidity | 212 N·m/arcmin |
Who makes it
MakerNabtesco Corporation
Based inJapan
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Price on request. |
Sources
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
