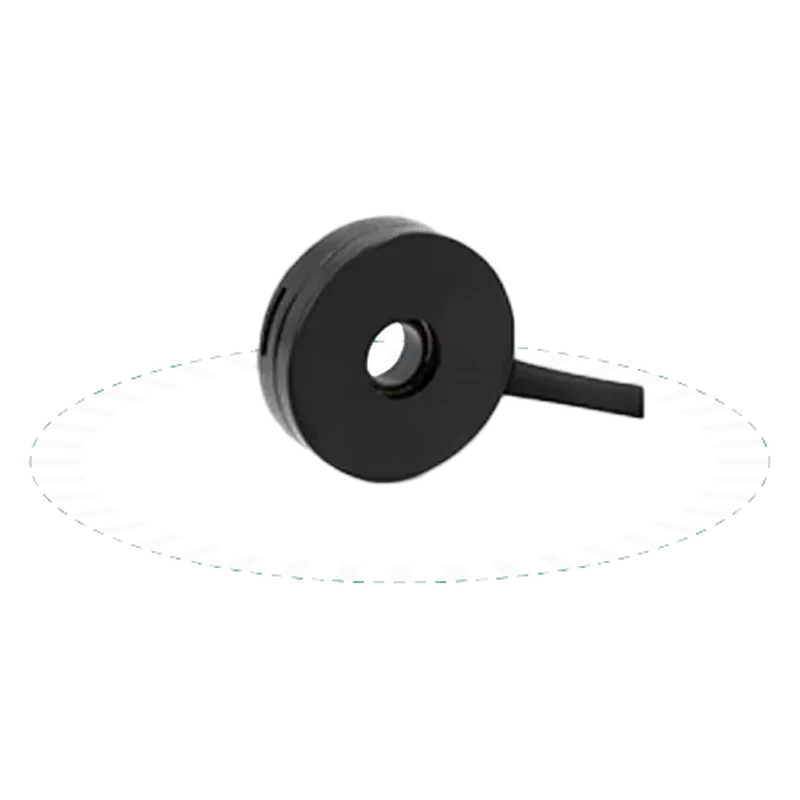

Netzer DS-25 Hollow-Shaft Absolute Electric Encoder
Netzer Precision · MPN DS-25 · Maglev ID ac-netzer-ds-25
IL Maker in Israel, factory not confirmed unknown VERIFIED
25 mm OD, 7 mm thick bearingless absolute encoder, 17-21 bit, SSI/BiSS-C; Israeli benchmark for small hollow joints and gimbals.
Specifications
| Resolution | 17-21 bit |
|---|---|
| Interface | SSI / BiSS-C (RS-422) |
| Type | Contactless electric (bearingless) hollow-shaft encoder, OD 25 mm / ID 6 mm / 7 mm high |
| Bore | 6 mm |
Who makes it
MakerNetzer Precision Position Sensors
Based inIsrael
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.netzerprecision.com/products/ds-25specs: 17-21 bit, ±0.010° EA, 4,000 rpm, 5 V ~90 mA
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
