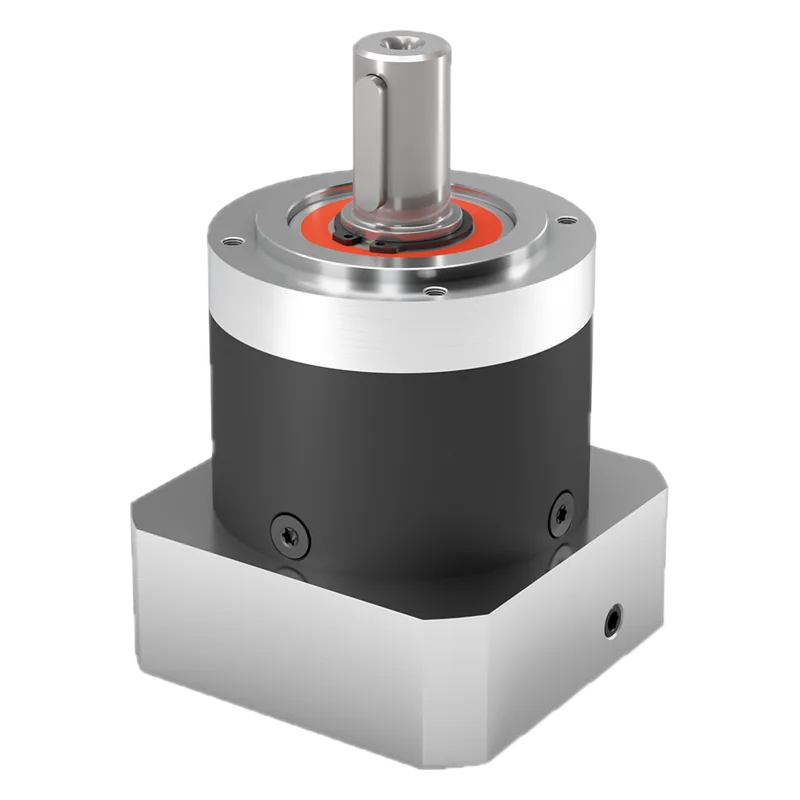

Neugart PLE 60 Economy Planetary Gearbox
Neugart · MPN PLE 060 (ratio selected in Tec Data Finder) · Maglev ID ac-neugart-ple60
DE Maker in Germany, factory not confirmed unknown VERIFIED
German 60 mm frame spur-planetary gearbox for servo motors; economy line, IP54, ratios 3-512.
Specifications
| Ratio | 3-10 (1-stage), 9-64 (2-stage), 60-512 (3-stage) |
|---|---|
| Cyclic torque T2Z | 15-40 N·m (1-stage, ratio dependent) |
| Standard backlash | <10 to <15 arcmin |
| Frame size | 60 mm |
| Mass | 0.9-1.3 kg |
| Frame size | 60 mm |
| Stages | unknown |
Who makes it
MakerNeugart GmbH
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40%
TW
10%
VN
15%
IN
12.5%
JP
12.5%
KR
12.5%
DE
10%
MX
12.5%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8483.40.50.10 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Per-ratio values only in Neugart's Tec Data Finder; price on quote. |
Equivalents from other makers
Works with
Sources
- https://www.neugart.com/en-us/gearboxes/economy-gearboxes/plePLE 060 ratio list, cyclic torque, backlash, weight
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
