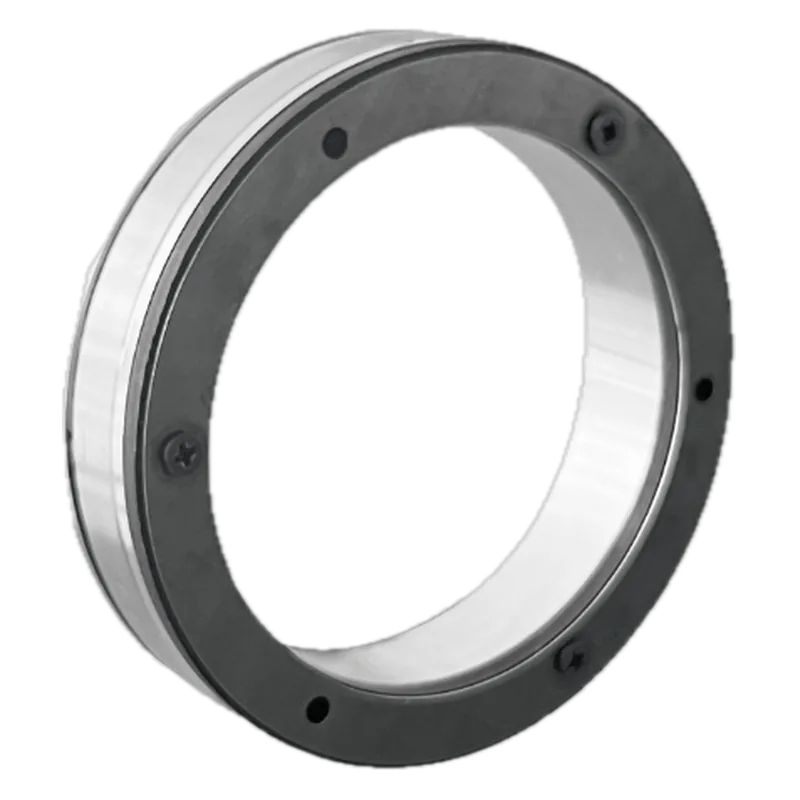

REACH REB16-08 Large-Bore Permanent Magnet Brake (8 Nm)
Hollow-ring permanent-magnet holding brake with a 58 mm through-bore for cables, sold by REACH for joint modules; pick it when the brake must sit around a hollow joint shaft.
Specifications
| Holding torque | 8 Nm (rated) |
|---|---|
| Voltage | 24 VDC |
| Outer diameter | 96 mm (flange D0; body D 86.0 mm) |
| Axial thickness | 17.1 mm (L) |
| Type | Permanent magnet, power-off, zero backlash, large hollow bore |
Who makes it
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.reachmachinery.com/uploadfiles/2025/12/20251225162735241.pdfREB16 technical data + dimension table (frame 08: 8 Nm, 24 V, 13 W, D0 96 mm, L 17.1 mm, d 58 mm)
- https://www.reachmachinery.com/ProductList/info.aspx?itemid=219product page, torque range 0.05-40 Nm, hollow structure
- https://www.reachmachinery.com/ProductList/index.aspx?lcid=99listed under Joint module brake category
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
