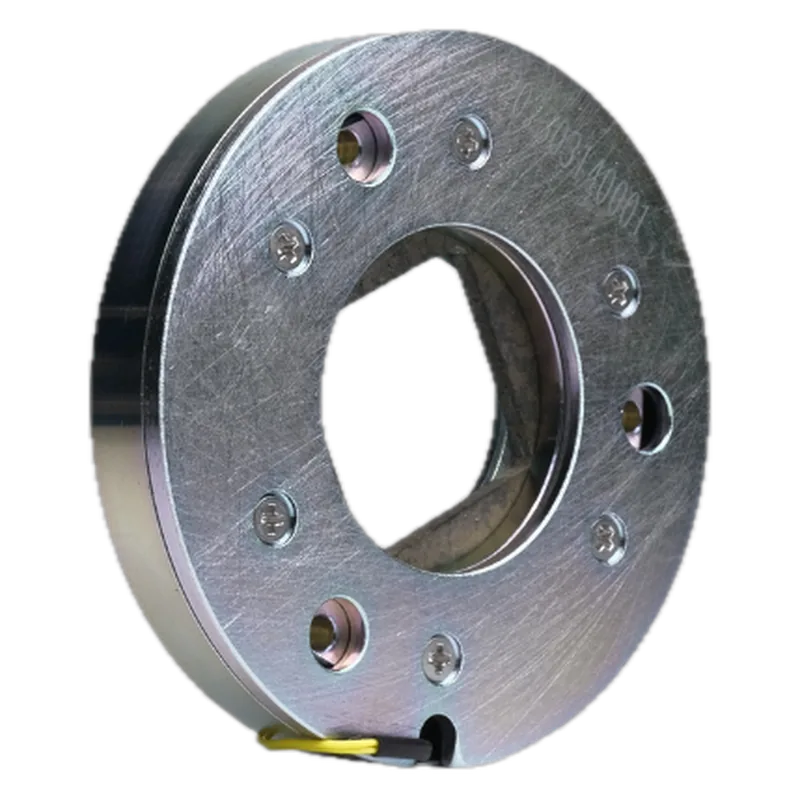

REACH REB18 110SLE Ultra-Thin Spring-Applied Brake (5 Nm)
REACH · MPN REB18 110SLE · Maglev ID ac-reach-reb18-110sle
CN Maker in China, factory not confirmed unknown VERIFIED
Ultra-thin spring-applied holding brake (16 mm thick, 47 mm inner bore) for thin servo motors and joint modules, driven with 24 V overexcitation then 7 V hold.
Specifications
| Holding torque | 5 Nm (static) |
|---|---|
| Voltage | 24 VDC overexcitation / 7 VDC hold |
| Outer diameter | 93.5 mm (A) |
| Axial thickness | 16 mm (K, brake thickness) |
| Type | Spring-applied, power-off, ultra-thin |
Who makes it
MakerREACH Machinery Co., Ltd. (瑞迪智驱, SZSE 301596)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.6%
TW
10%
VN
15.6%
IN
13.1%
JP
12.5%
KR
12.5%
DE
10%
MX
13.1%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8505.20.0000 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.reachmachinery.com/uploadfiles/2025/12/20251225162735241.pdfREB18SLE technical data + dimensions (110SLE: 5 Nm, OD 93.5 mm, thickness K 16 mm, inner bore 47 mm)
- https://www.reachmachinery.com/ProductList/index.aspx?lcid=99Ultra-thin spring brake listed under Joint module brake category
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
