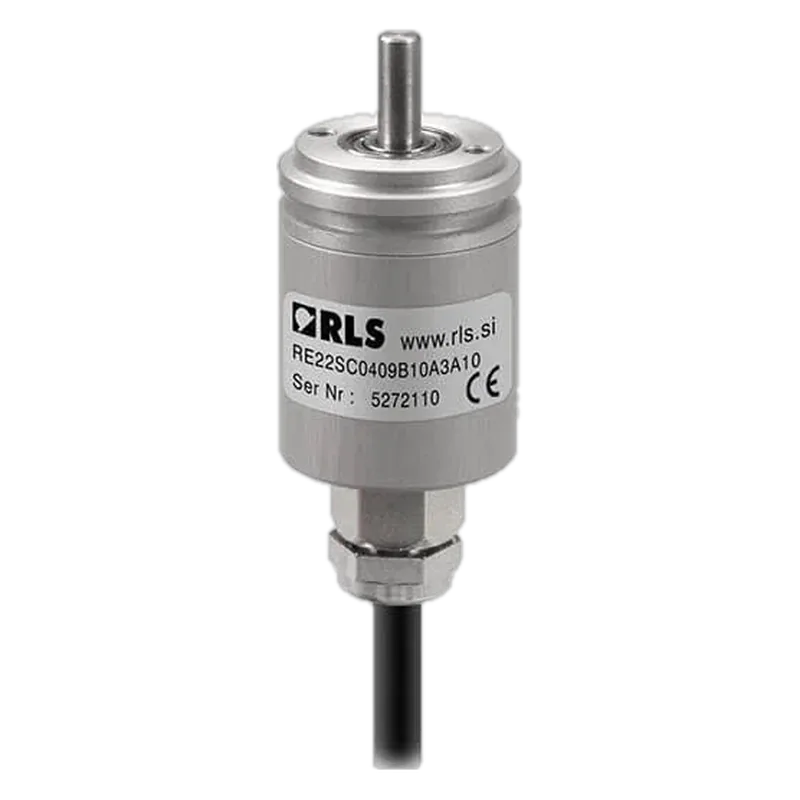

RLS RE22 Rotary Magnetic Shaft Encoder (22 mm, 4 mm shaft)
22 mm housed shaft encoder with bearings and a 4 mm shaft, up to 13-bit SSI / BiSS C; for coupling to a stub output shaft when there is no room for a 44 mm RM44.
Specifications
| Resolution | up to 13 bit (BiSS C up to 8,192 positions) |
|---|---|
| Accuracy | ±0.3° (page); typ. ±0.5° in datasheet table |
| Max speed | 30,000 rpm |
| Interface | Analogue sin/cos; incremental; linear voltage; SSI; BiSS C |
| Form | on-axis module: Ø22 mm housed shaft encoder, Ø4 mm shaft |
| Sensing | Hall (on-axis) |
| Supply | 5 V ±5 % |
| Bore / ring ID | n/a |
| Outer diameter | Ø22 mm |
| Operating temp | -40 °C to +120 °C |
