RLS RMC22 Commutation + Incremental Magnetic Motor Encoder (22 mm)

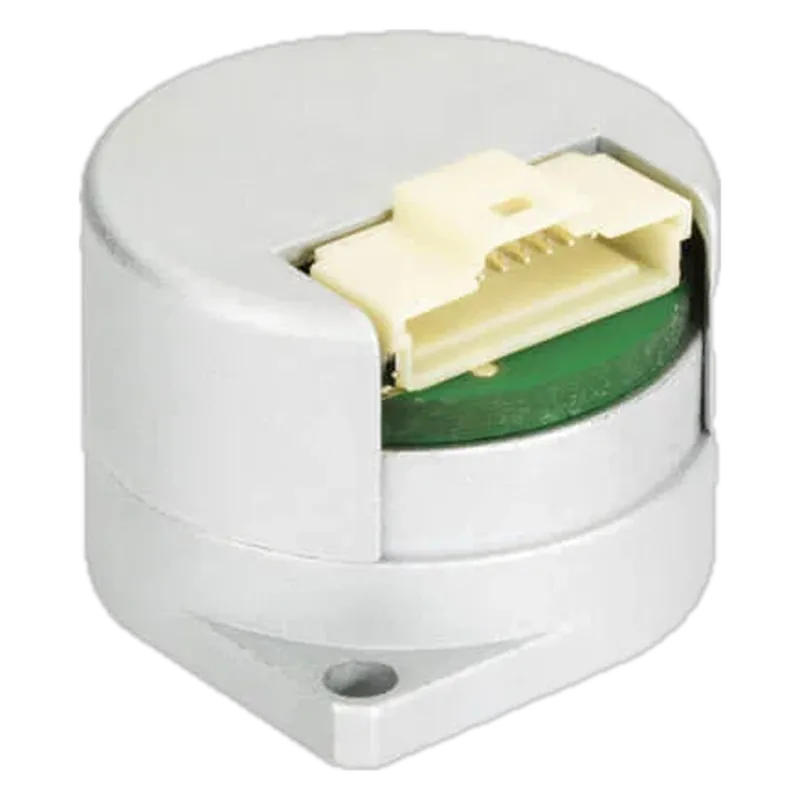

22 mm on-axis motor-feedback module giving ABZ incremental plus UVW commutation for up to 16 poles; replaces Hall sensors + optical encoder on a joint BLDC motor.
Specifications
| Resolution | incremental up to 4,096 cpr (not absolute) |
|---|---|
| Accuracy | unknown |
| Max speed | 30,000 rpm |
| Interface | RS422 incremental ABZ; UVW commutation (up to 16 poles) |
| Form | on-axis module: Ø22 mm module on metal flange + magnet |
| Sensing | Hall (OnAxis) |
| Supply | 5 V ±10 % (UVW family datasheet) |
| Bore / ring ID | n/a |
| Outer diameter | Ø22 mm |
| Operating temp | -40 °C to +105 °C |
