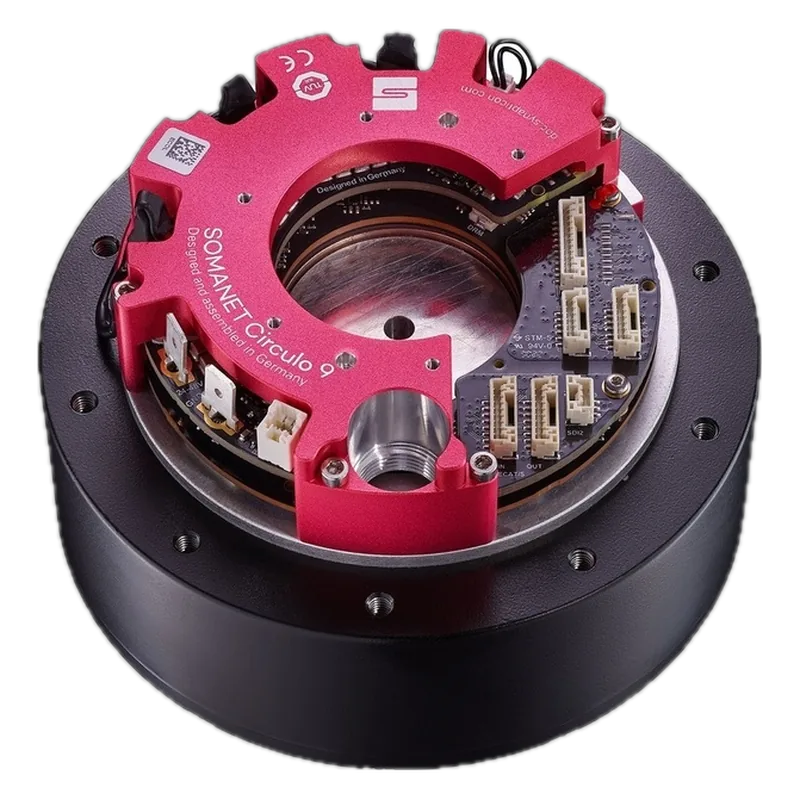

Synapticon ACTILINK-JD Circulo 12 Dynamic Actuator
Synapticon · MPN AJD-12-120-200-ECS1SS-N-00 · Maglev ID ac-synapticon-actilink-jd-circulo-12
DE Maker in Germany, factory not confirmed unknown VERIFIED
German EtherCAT joint actuator (9:1, 120 mm) with SOMANET Circulo 9 drive and STO/Safe Motion option, for humanoid legs and heavy legged-robot joints.
Specifications
| Peak torque | 110 N·m |
|---|---|
| Rated torque | 40 N·m |
| Gear ratio | 9:1 |
| Voltage | unknown |
| Mass | 1580 g (S1-SS); 1845-1870 g dual-encoder variants |
| Interface | EtherCAT; STO standard, Safe Motion/FSoE option |
Who makes it
MakerSynapticon GmbH
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Sold by RFQ; no price or stock state shown. |
Equivalents from other makers
Sources
- https://catalog.synapticon.com/shop/actilink-jd-circulo-12-2712specs (maker catalog)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
