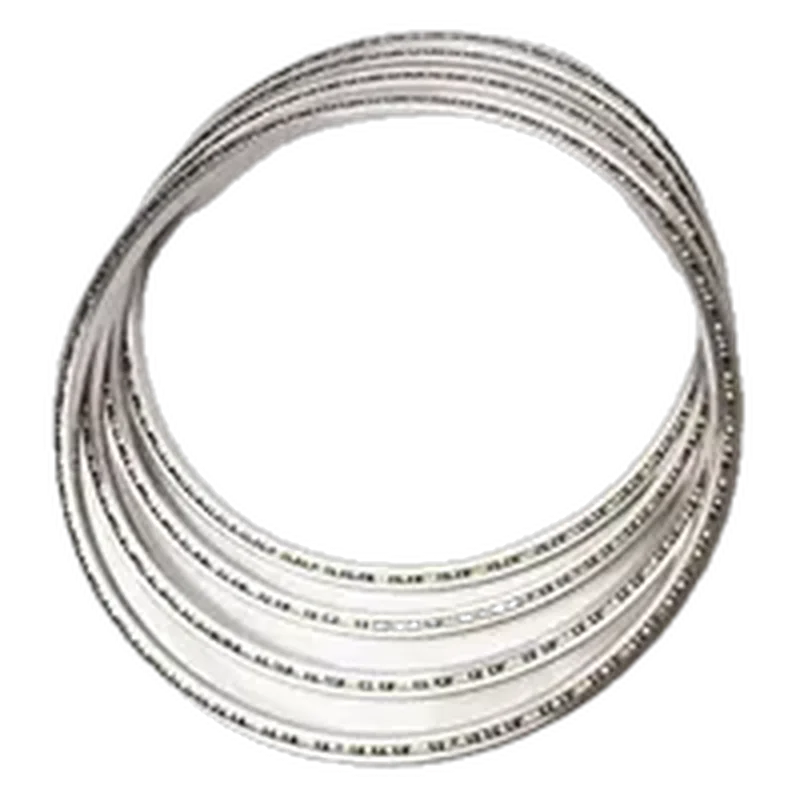

YDPB YDKA020XP0 Thin-Section Four-Point Contact Bearing (KA020XP0 size)
YDPB · MPN YDKA020XP0 · Maglev ID ac-ydpb-ydka020xp0
CN Maker in China, factory not confirmed unknown REPORTED
Luoyang-made KA020XP0-size four-point contact thin-section bearing (2 x 2.5 x 0.25 in), a factory-direct alternative to the Kaydon part.
Specifications
| Bore | 50.8 mm |
|---|---|
| Outside diameter | 63.5 mm |
| Width | 6.35 mm |
| Type | Four-point contact (Type X), open, KA-series 1/4 in section |
| Material | GCr15 bearing steel rings; brass, PA12 or nylon cage (stainless optional) |
| Radial dynamic load | 2280 N |
Who makes it
MakerLuoyang Yadian Machinery Equipment Co., Ltd.
Based inChina
RoleFactory
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
46.5%+?
TW
10%+?
VN
21.5%+?
IN
19%+?
JP
12.5%+?
KR
12.5%+?
DE
10%+?
MX
19%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.10.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.suppliergo.com/provide/p173670013.htmlspecs, equivalents, MOQ, lead time, image
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
