ZeroErr eCoder35 RS485 Absolute Magnetic Ring Encoder, 35 mm Bore
ZeroErr · MPN eCoder35 · Maglev ID ac-zeroerr-ecoder35
CN Maker in China, factory not confirmed unknown REPORTED

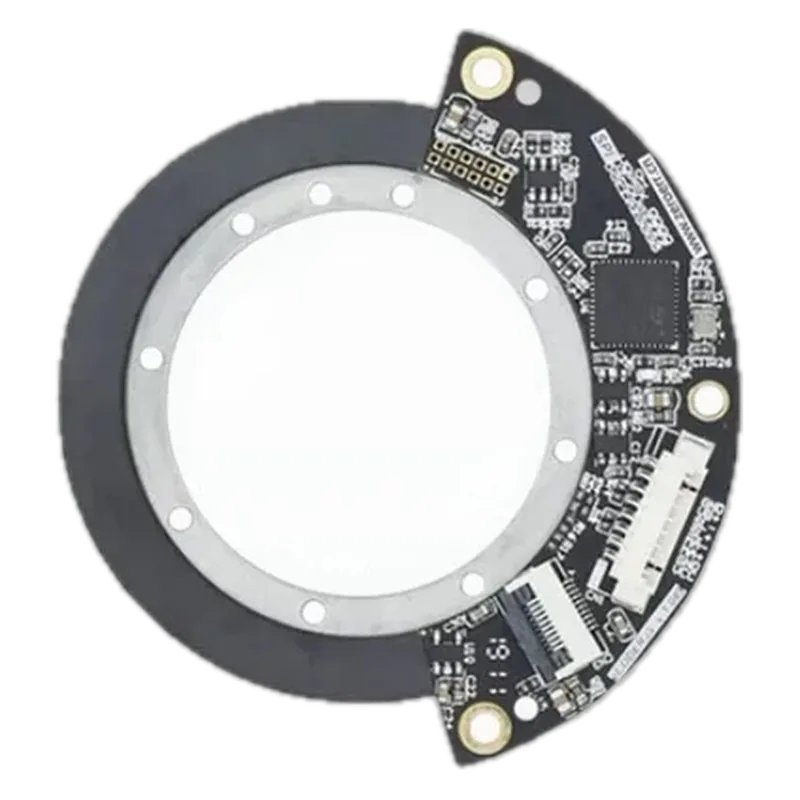

Large-bore (35 mm) ZeroErr ring encoder with a 150° arc readhead, up to 20-bit, for hollow-shaft arm and humanoid joints.
Specifications
| Resolution | 17, 19 or 20-bit selectable |
|---|---|
| Interface | RS-485 |
| Type | Axial-reading magnetic ring (35 mm ID / 55 mm OD) + 150° arc readhead; battery-backed multi-turn option |
| Bore | 35 mm |
Who makes it
MakerZeroErr
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://aifitlab.com/products/zeroerr-ecoder35-magnetic-encodersvariants, price, <0.05° tolerance, ±5" repeatability, dimensions, stock
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
