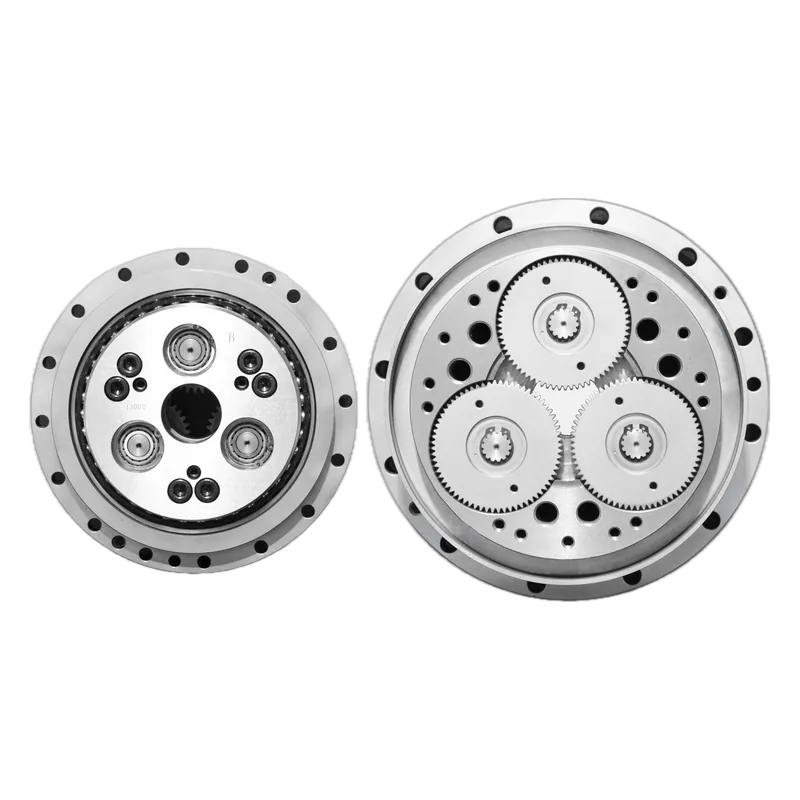

Zhenkang ZKRV-50C RV Reducer
Zhenkang (振康) · MPN ZKRV-50C · Maglev ID ac-zhenkang-zkrv-50c
CN Maker in China, factory not confirmed unknown VERIFIED
Nantong Zhenkang ZKRV-50C RV reducer (hollow C-type); 490 N·m rated, 1 arcmin backlash.
Specifications
| Ratio | 32.54 |
|---|---|
| Rated torque | 490 N·m |
| Allowable start/stop torque | 1225 N·m (momentary max 2450 N·m) |
| Backlash | 1 arcmin (lost motion 1 arcmin) |
| Outer diameter | 222.5 mm (dimension A) |
| Hollow shaft | Yes (center hole Φ57 mm) |
| Mass | 14.6 kg |
Who makes it
MakerNantong Zhenkang Welding Electromechanical Co., Ltd. (南通振康焊接机电有限公司)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Specs read from maker spec-table image (Chinese). |
Equivalents from other makers
Sources
- https://www.zhenkang.com/product_detail/570658.htmlZKRV-C product page
- http://img.iapply.cn/00a0787ef43f13d5b51cedc9c14cdd2crating/dimension table image
- https://www.zhenkang.com/product/216300.htmlRV category page with series photo
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
