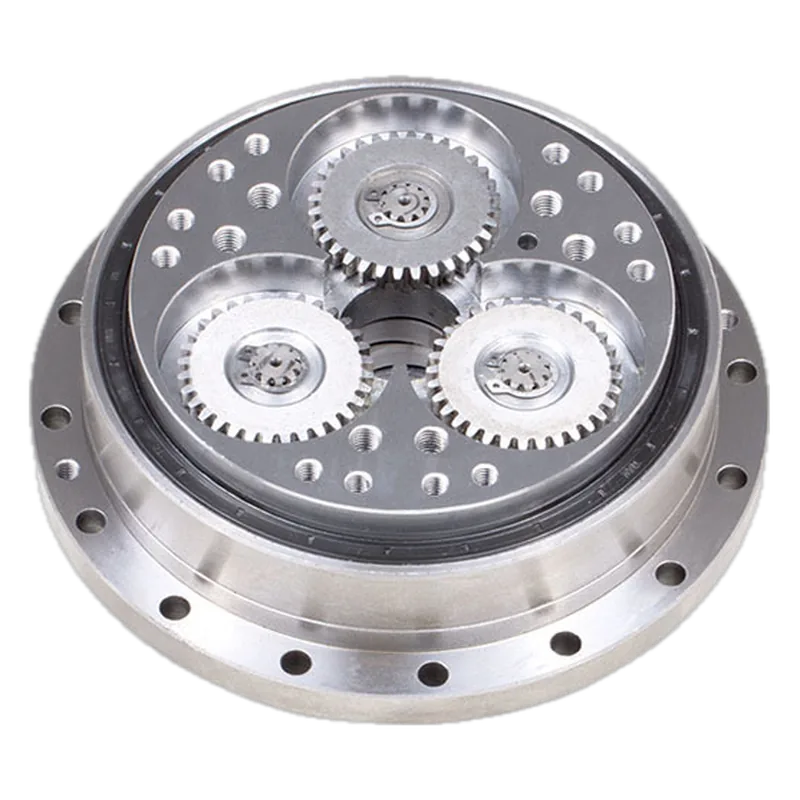

Zhongda Leader 190BX-RVE Precision Cycloid Reducer
Zhongda Leader (中大力德) · MPN 190BX-RVE · Maglev ID ac-zhongda-190bx-rve
CN Maker in China, factory not confirmed unknown VERIFIED
Zhongda Leader 190BX-RVE RV-type cycloidal-pin precision reducer; 392 N·m rated at 15 r/min, 1.0 arcmin backlash.
Specifications
| Ratio | 81 / 105 / 121 / 153 |
|---|---|
| Rated torque at 15 r/min | 392 N·m |
| Allowable start/stop torque | 1029 N·m (momentary max 2000 N·m) |
| Backlash | 1.0 arcmin |
| Outer diameter | 190 mm (catalog outline drawing p14) |
| Hollow shaft | unknown |
| Mass | 9.3 kg |
Who makes it
MakerNingbo Zhongda Leader Intelligent Transmission Co., Ltd. (宁波中大力德, SZ 002896)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Catalog PDF host requires a zd-motor.com Referer header. |
Equivalents from other makers
Sources
- https://www.zd-motor.com/product/BX-RVE%E7%B3%BB%E5%88%97%E6%91%86%E7%BA%BF%E9%92%88%E8%BD%AE%E7%B2%BE%E5%AF%86%E5%87%8F%E9%80%9F%E5%99%A8-85.htmlmaker product page
- https://omo-oss-file110.thefastfile.com/portal-saas/new2023112914304788904/cms/file/%E6%91%86%E7%BA%BF%E9%92%88%E8%BD%AE%E7%B2%BE%E5%AF%86%E5%87%8F%E9%80%9F%E5%99%A8.pdfmaker cycloid reducer catalog PDF (rated torque table 3, E/C rating tables, outline drawing p14)
- https://www.zd-motor.com/down1/p-12-12.htmlmaker downloads page linking the catalog
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
