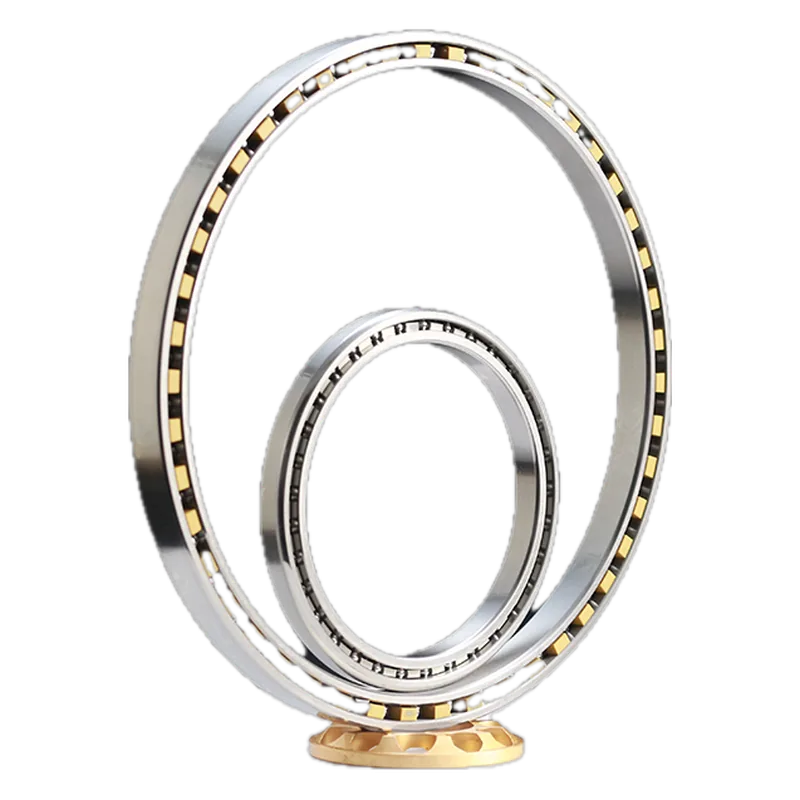

ZYS ZJ06008C Thin-Section Bearing
ZYS · MPN ZJ06008C · Maglev ID ac-zys-zj06008c
CN Maker in China, factory not confirmed unknown VERIFIED
ZYS equal-section thin-wall bearing 60×76×8 mm, deep groove ball (type c).
Specifications
| Bore | 60 mm |
|---|---|
| Outside diameter | 76 mm |
| Width | 8 mm |
| Type | Deep groove ball (Type C), equal 8 mm section |
| Material | unknown |
| Basic dynamic load rating Cr | 3.8 kN (Cor 6.6 kN) |
| Mass | 0.09 kg |
Who makes it
MakerLuoyang Bearing Research Institute Co., Ltd. (ZYS, 洛阳轴研科技)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
46.5%+?
TW
10%+?
VN
21.5%+?
IN
19%+?
JP
12.5%+?
KR
12.5%+?
DE
10%+?
MX
19%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8482.10.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Ring/ball material not stated on page. |
Sources
- https://www.zys-bearing.com/thin-wall-bearings-with-equal-sections/equal-section-thin-wall-deep-groove-ball-bearing.htmlZYS series table (d, D, B, Cor, Cr, mass)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
