Luckfox Core3566
Luckfox · MPN Core3566104000 (4GB/0GB/WiFi); 8 SKUs Core3566[0|1]0[2|4]0[00|32] · Maglev ID cm-luckfox-core3566
CN Maker in China, factory not confirmed unknown VERIFIED

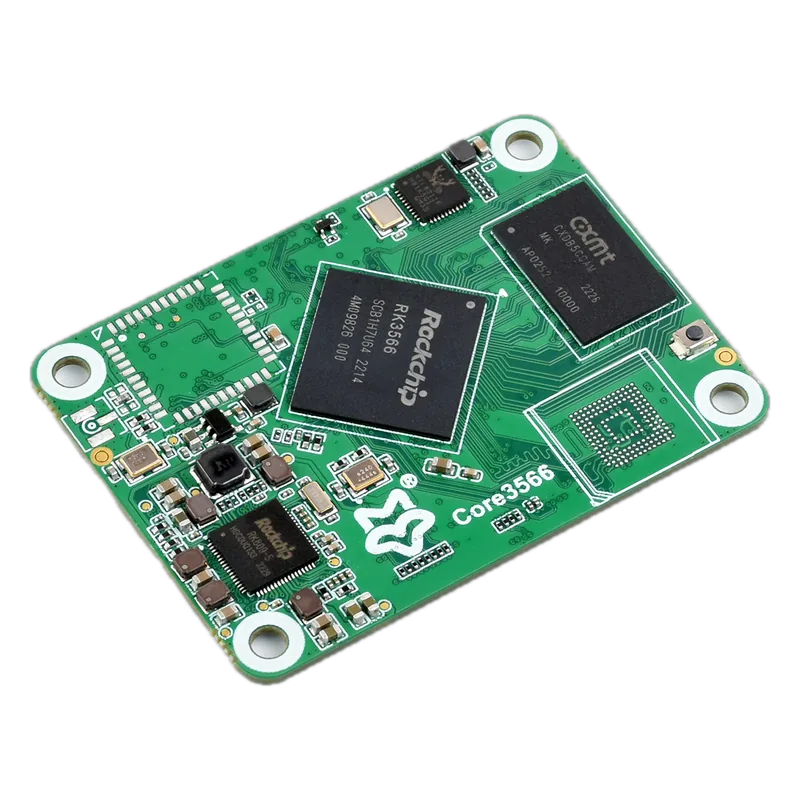

RK3566 module in the Raspberry Pi CM4 footprint (55 x 40 mm), also sold by Waveshare with a published 100+ price tier.
Specifications
| SoC | Rockchip RK3566 |
|---|---|
| NPU | 0.8 TOPS INT8 |
| Memory | LPDDR4 2GB or 4GB |
| Form factor | Raspberry Pi CM4-compatible module, 55 x 40 x 4.7 mm |
| Operating temp | -10 to 80 C (ambient) |
| eMMC | 0GB (Lite) or 32GB |
Who makes it
MakerLuckfox
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
25%+?
TW
0%+?
VN
0%+?
IN
0%+?
JP
0%+?
KR
0%+?
DE
0%+?
MX
0%+?
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8473.30.11.80 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Prices: qty-1 $83.99 and qty-100 $82.97 are 2GB/0GB/WiFi; qty-100 $101.63 is 4GB/0GB/WiFi. |
Equivalents from other makers
Sources
- https://www.luckfox.cn/Core3566specs, 8 SKUs, compatible CM4 carriers; price range CNY 496.92-795.88 (seen 2026-10-29)
- https://www.waveshare.com/core3566.htmWaveshare listing $77.99-$125.99 (2026-10-29); per-config Maglev 2026-10-27: 2GB/0GB/WiFi $83.99 (1) / $82.97 (100+); 4GB/0GB/WiFi $102.99 / $101.63 (100+)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
