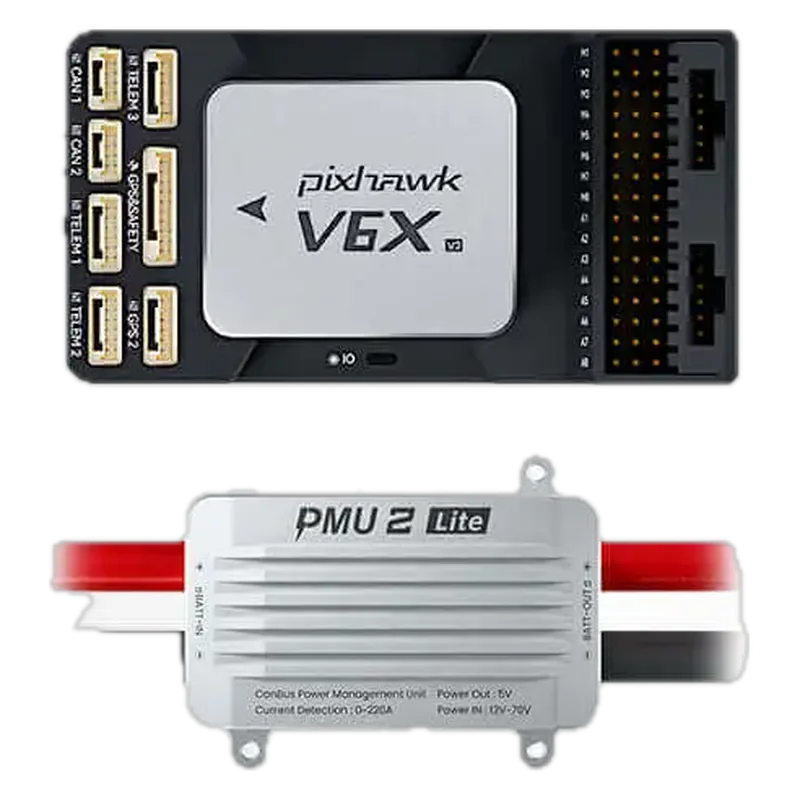

CUAV Pixhawk V6X
CUAV · Maglev ID dr-cuav-pixhawk-v6x
CN Maker in China, factory not confirmed Not NDAA VERIFIED
CUAV's FMUv6X Pixhawk with triple IMUs, RM3100 compass and Ethernet; a China-made alternative to the Holybro 6X.
Specifications
| Processor | STM32H753 Cortex-M7 480 MHz (+ STM32F103 IO) |
|---|---|
| IMUs | BMI088 + ICM-42688-P + ICM-20649 |
| Weight | 99 g (core module 43 g + baseboard 56 g) |
| Interfaces | Ethernet, CAN, UART, I2C, SPI, PWM |
Who makes it
MakerCUAV (Guangzhou Leixun Innovation Technology Co., Ltd.)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | non-compliant |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | CUAV is a Guangzhou, China company (copyright line on cuav.net names 广州雷迅创新科技股份有限公司); a flight controller from a PRC-domiciled maker falls under the NDAA FY2020 §848 / ASDA restrictions. CUAV store shows a price range of $369-$1,388 across kits and 'Out of stock', so no single price recorded. NDAA FY2020 §848 bars DoD use of UAS whose flight controllers, radios, data transmission devices, cameras, gimbals, ground control systems or operating software are made in a covered foreign country (incl. China) or by an entity domiciled there; FY2024 §1823 (American Security Drone Act) extends this to federal agencies. |
Equivalents from other makers
Sources
- https://docs.px4.io/main/en/flight_controller/cuav_pixhawk_v6x.htmlspecs (PX4 docs)
- https://store.cuav.net/shop/pixhawk-v6x/store page, price range, stock
- https://www.cuav.net/en/about-us/company legal name (Guangzhou)
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'no CUAV entries'
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
