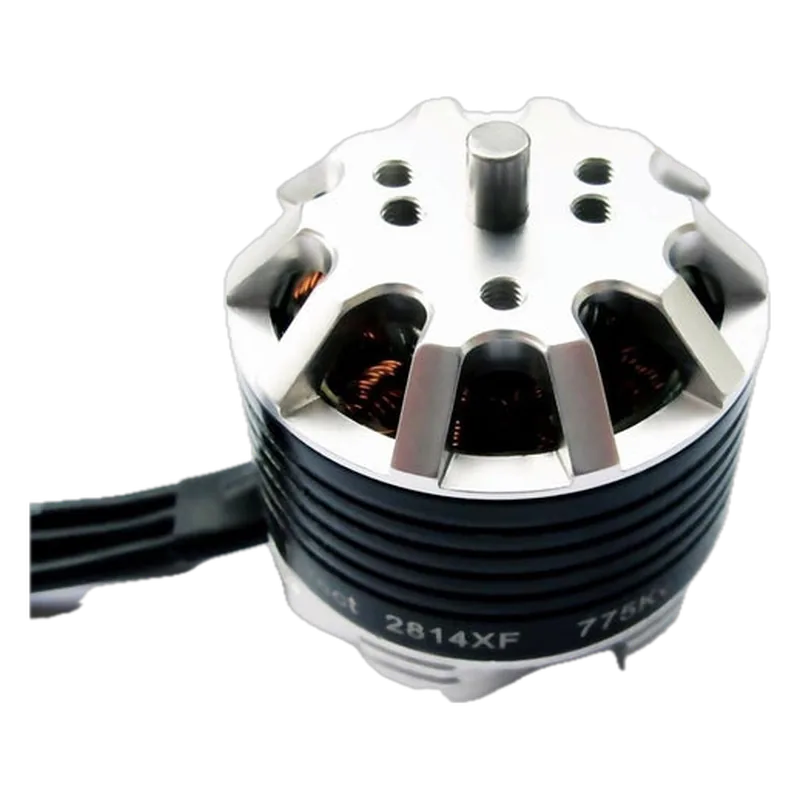

KDE Direct KDE2814XF-775 Brushless Motor
KDE Direct · MPN KDE2814XF-775 · Maglev ID dr-kde-2814xf-775
CN Made in China unknown VERIFIED
3-5S 775KV sUAS motor with triple bearings and published test data; US-designed, China-manufactured.
Specifications
| KV | 775 |
|---|---|
| Stator | 2814, 0.2 mm Japanese laminations, 12S14P |
| Max thrust | 2099 g measured (2302 g est. sea level), 4S 16.8 V, 12.5x4.3 triple-blade, 100% |
| Weight | 95 g motor only (125 g with wires) |
| Cells (LiPo) | 3S LiPo - 5S LiHV (11.1-21.8 V) |
Who makes it
MakerKDE Direct
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | KDE product page: 'Designed in the USA, manufactured in China.' Max continuous 36 A (180 s). KDE recommends UAS 35A+ ESC and 12.5x4.3 dual blades. Maker HQ assumed US from 'Designed in the USA' (city not verified). Motors and props are not among the critical components enumerated in NDAA FY2020 §848, so no NDAA claim is made either way; check your program's own sourcing rules. |
Equivalents from other makers
Works with
Sources
- https://www.kdedirect.com/products/kde2814xf-775specs, made-in, recommended ESC/prop
- https://cdn.shopify.com/s/files/1/0496/8205/files/KDE2814-775.pdfthrust test data
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
