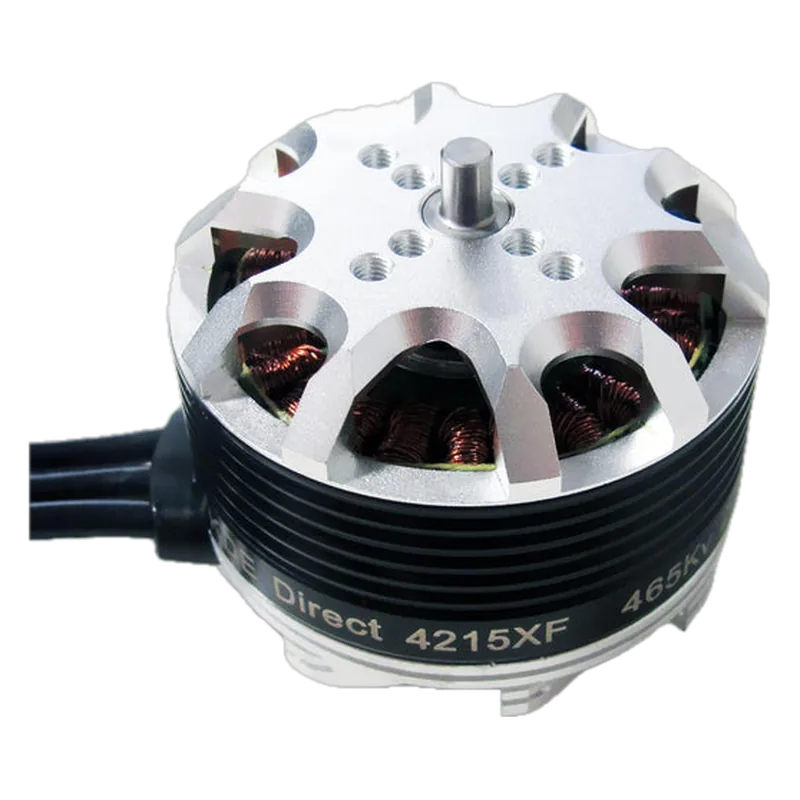

KDE Direct KDE4215XF-465 Heavy-Lift Motor
KDE Direct · MPN KDE4215XF-465 · Maglev ID dr-kde-4215xf-465
CN Made in China unknown VERIFIED
4-6S heavy-lift 465KV motor for 15.5-18.5 in props; US-designed, China-manufactured.
Specifications
| KV | 465 |
|---|---|
| Stator | 4215, 0.2 mm Japanese laminations, 24S22P |
| Max thrust | 5608 g measured (6150 g est. sea level), 6S 25.2 V, 18.5x6.3 dual-blade, 100% |
| Weight | 195 g motor only (250 g with wires) |
| Cells (LiPo) | 4S LiPo - 6S LiHV (14.8-26.1 V) |
Who makes it
MakerKDE Direct
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | KDE product page: 'Designed in the USA, manufactured in China.' Max continuous 62 A (180 s). KDE recommends UAS 55A+ HVC ESC (alt. 75A+ HVC) and 15.5x5.3 triple blades. Motors and props are not among the critical components enumerated in NDAA FY2020 §848, so no NDAA claim is made either way; check your program's own sourcing rules. |
Equivalents from other makers
Works with
Sources
- https://www.kdedirect.com/products/kde4215xf-465specs, made-in, recommended ESC/prop
- https://cdn.shopify.com/s/files/1/0496/8205/files/KDE4215-465kV.pdfthrust test data
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
