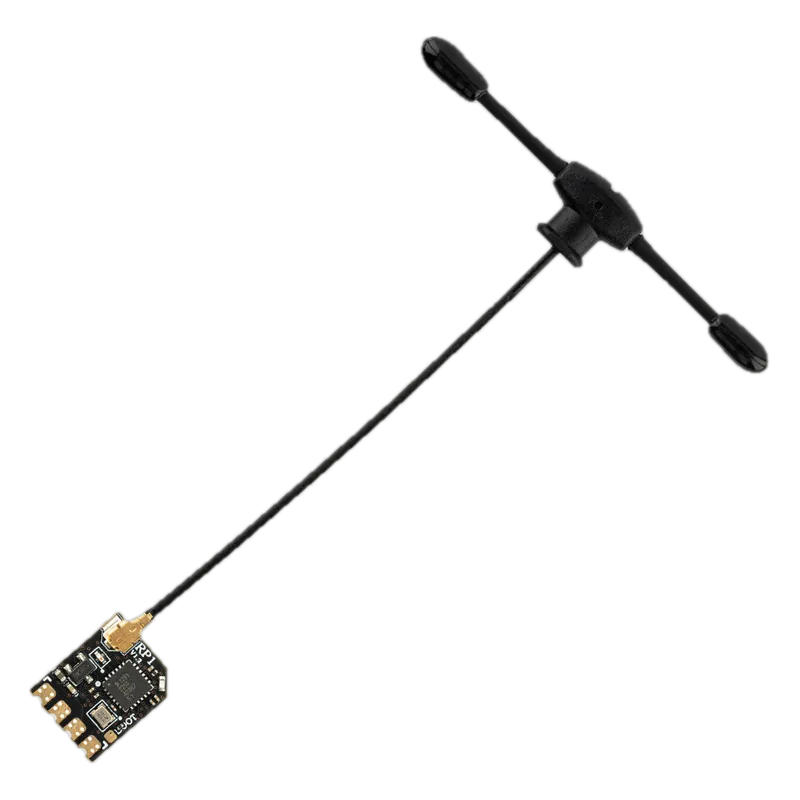

RadioMaster RP1 V2 ExpressLRS 2.4 GHz Nano Receiver
RadioMaster · MPN HP0157.RX-RP1-V2 · Maglev ID dr-radiomaster-rp1-v2
CN Maker in China, factory not confirmed Not NDAA VERIFIED
2.2 g ELRS 2.4 GHz receiver, the cheap default R/C link on FPV builds.
Specifications
| Band | 2.404-2.479 GHz |
|---|---|
| Range | unknown |
| Throughput | n/a (CRSF R/C link) |
| Weight | 2.2 g incl. antenna |
| Telemetry power | 10 mW |
Who makes it
MakerShenzhen RadioMaster Co., Ltd
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
7.5%
TW
0%
VN
0%
IN
0%
JP
0%
KR
0%
DE
0%
MX
0%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8517.62.00.90 typical, not a ruling |
|---|---|
| NDAA | non-compliant |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | Maker is Shenzhen RadioMaster Co., Ltd (address in Bao'an, Shenzhen, China per maker's T8 Quick Start Guide); radios from a PRC-domiciled maker fall under NDAA §848 / ASDA. Page is inconsistent on RF chip (SX1281 vs SX1280). LBT variant: HP0157.RX-RP1-V2-LBT. NDAA FY2020 §848 bars DoD use of UAS whose flight controllers, radios, data transmission devices, cameras, gimbals, ground control systems or operating software are made in a covered foreign country (incl. China) or by an entity domiciled there; FY2024 §1823 (American Security Drone Act) extends this to federal agencies. |
Equivalents from other makers
Sources
- https://radiomasterrc.com/collections/receivers/products/rp1-expresslrs-2-4ghz-nano-receiverspecs, SKU, price
- https://cdn.shopify.com/s/files/1/0609/8324/7079/files/T8_Quick_Start_Guide.pdfmaker legal name and Shenzhen address
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
