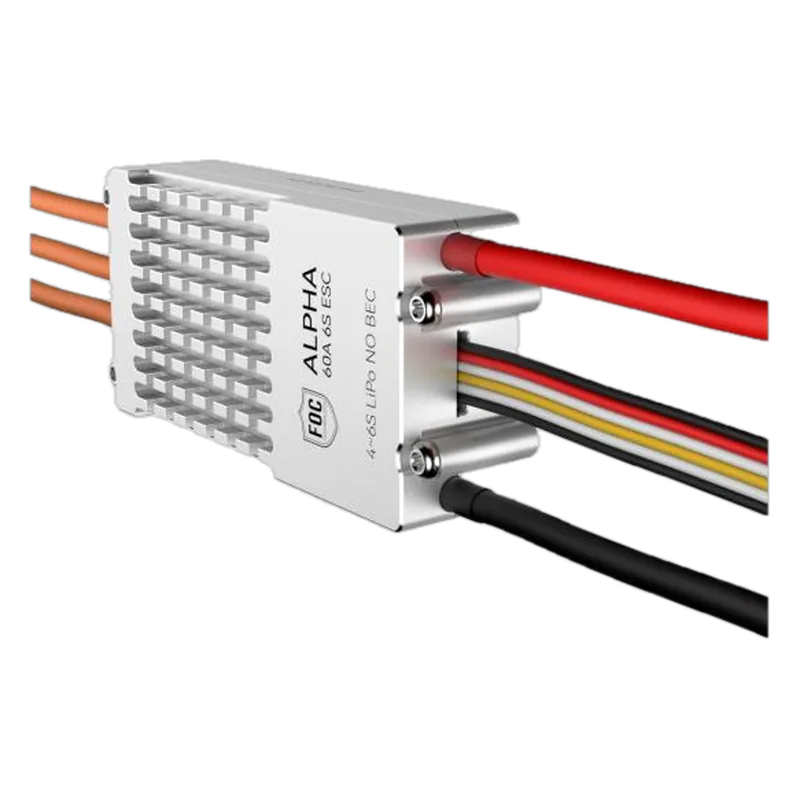

T-MOTOR ALPHA 60A 6S FOC ESC
T-MOTOR · Maglev ID dr-tmotor-alpha-60a-6s
CN Maker in China, factory not confirmed unknown VERIFIED
Single-motor 6S FOC ESC for T-Motor U8-class heavy-lift motors.
Specifications
| Continuous current | 40 A (60 A peak 10 s) |
|---|---|
| Cells (LiPo) | 6S (18-25.2 V) |
| Protocol | PWM throttle 1100-1940 µs, 500 Hz refresh |
| Weight | 62.8 g incl. cables |
Who makes it
MakerT-MOTOR
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | not-listed |
| FCC | n/a |
| Notes | No T-MOTOR entry on the DCMA Blue UAS list. Store page makes no NDAA or origin statement. T-MOTOR head office is in Nanchang, China (shop.tmotor.com about page). |
Sources
- https://store.tmotor.com/product/alpha-60a-6s-esc.htmlspecs, price
- https://bluelist.dcma.mil/gsp?id=gsp_indexDCMA Blue UAS list (Cleared List + Framework, transitioned from DIU), 'Blue List Products' table read 2026-10-29: entry 'no T-MOTOR entries'
- https://shop.tmotor.com/pages/about-tmotorT-MOTOR head office in Nanchang, China
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
