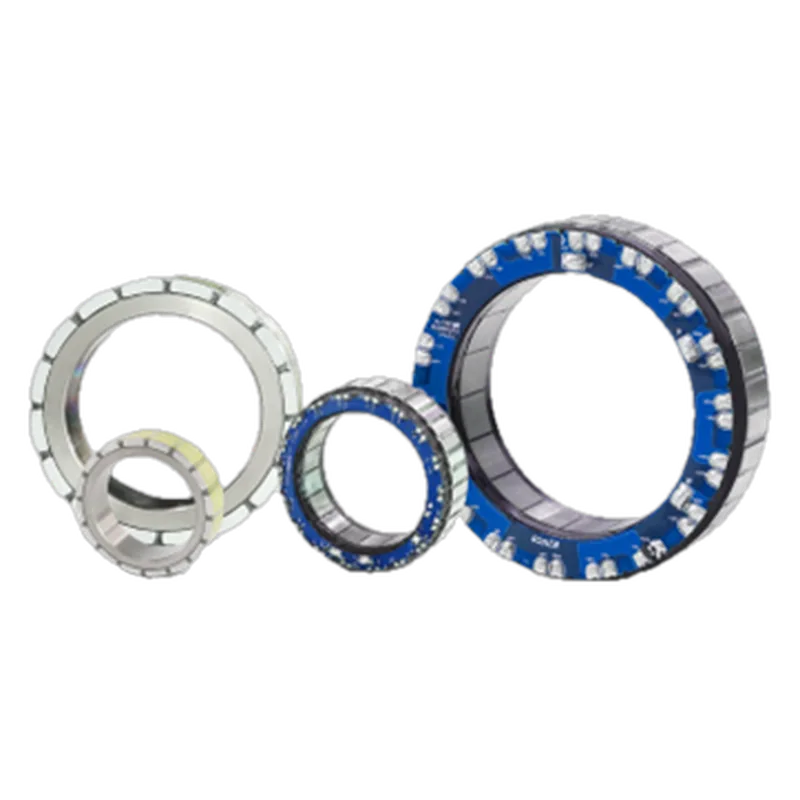

Kinco FMH08522 Large-Bore Frameless Torque Motor
Kinco · MPN FMH08522-0063-2558N-14DP02 · Maglev ID mo-kinco-fmh08522
CN Maker in China, factory not confirmed unknown VERIFIED
Long-stack 85 mm frameless kit, 10.8 Nm peak, for humanoid knee/hip and linear-actuator drives.
Specifications
| Peak torque | 10.8 Nm max |
|---|---|
| Continuous torque | 2.4 Nm rated |
| Outer diameter | 85 mm stator OD |
| Axial length | 34 mm total height |
| Voltage | 48 V |
| Mass | unknown |
| Rotor bore | 58 mm |
| Stator core height | 22 mm |
| Rated current | 6.2 A |
| Peak current | 28 A |
| Torque constant | 0.43 Nm/A |
| Rated power | 628 W |
Who makes it
MakerKinco Automation (Shanghai) Co., Ltd. (步科股份, 688160.SH)
Based inChina
RoleBrand owner
Kinco (步科) is in Maglev's China landscape as CN026 (FMK/FMH frameless motors, RD1X5 hollow drives); a frameless-motor RFQ route is listed there.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.kinco.cn/product/249?classification_id=63FMH series spec table: rated/max torque, current, speed, Kt (48 VDC)
- https://cdownload.kinco.cn/Download/MC_new/catalog/Motor/FMH%E5%A4%A7%E4%B8%AD%E7%A9%BA%E6%97%A0%E6%A1%86%E5%8A%9B%E7%9F%A9%E7%94%B5%E6%9C%BA%E5%8D%95%E9%A1%B5-K4C53-20260922.pdfFMH selection sheet: stator OD, core height, rotor bore, total height
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
