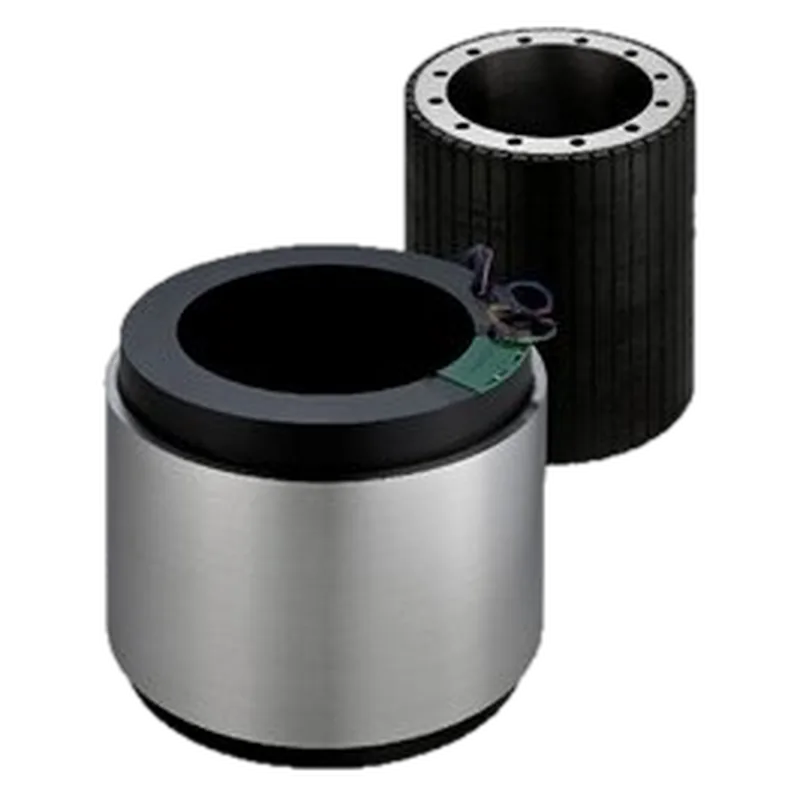

Kollmorgen KBMS-10H02-B Frameless Motor (with Halls)
Kollmorgen · MPN KBMS-10H02-B · Maglev ID mo-kollmorgen-kbms-10h02-b
US Maker in United States, factory not confirmed unknown VERIFIED
60 mm KBM frameless stator/rotor kit with Hall sensors; an industrial high-voltage benchmark for direct-drive axes and large joints.
Specifications
| Peak torque | 2.48 Nm (peak standstill, 25 C winding) |
|---|---|
| Continuous torque | 0.899 Nm continuous standstill (155 C winding) |
| Outer diameter | 59.97 mm stator OD (dim. C) |
| Axial length | 65.00 mm (catalog dim. A, stator); KBMS rotor 57.05 mm |
| Voltage | unknown; H = high-voltage insulation (>240 V AC), catalog pairs this winding with servo amp type 00307 |
| Mass | 0.703 kg (KBMS); 0.658 kg KBM |
| Rotor bore | 16.01 mm max (dim. D) |
| Rated speed | 15200 rpm |
| Rated power | 785 W |
| Continuous standstill current | 3.0 A |
| Peak current | 8.65 A |
Who makes it
MakerKollmorgen
Based inUnited States
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
40.4%
TW
10%
VN
15.4%
IN
12.9%
JP
12.5%
KR
12.5%
DE
10%
MX
12.9%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.32.20.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://micromech.co.uk/wp-content/uploads/2023/12/kbm_catalogue.pdfKollmorgen KBM catalogue section (hosted by distributor Micromech): performance row 10X02-B, dimensions, nomenclature
- https://www.micromech.co.uk/product/kbm-series-frameless-brushless-motor-kollmorgen/distributor product page (Micromech UK), series photo
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
