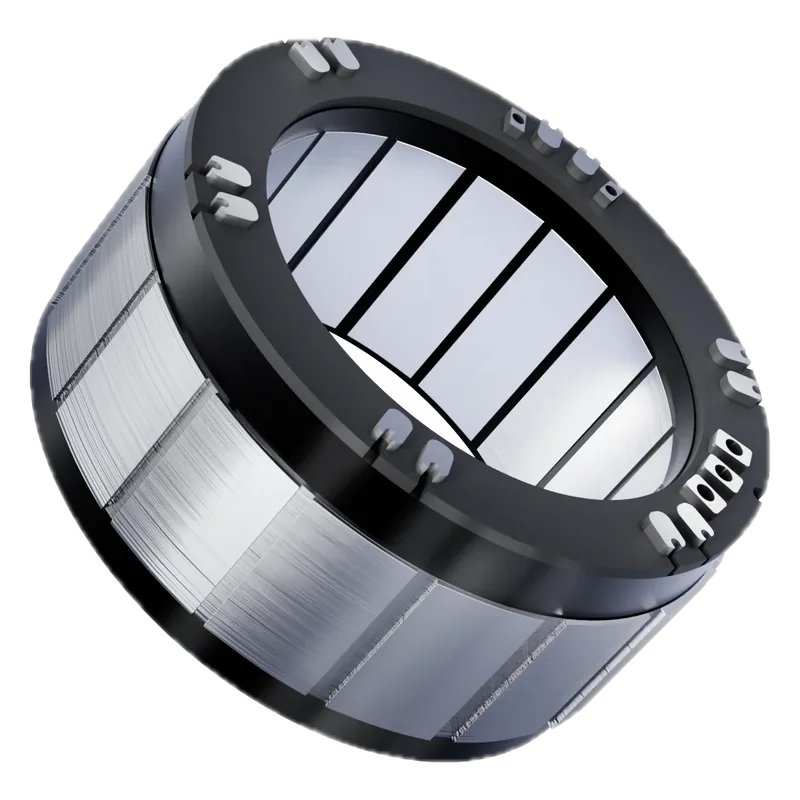

Leadshine FM2-04308KTN376 Frameless Motor
43 mm FM2 frameless kit (stator core 8 mm) for small wrist, finger and neck joints.
Specifications
| Peak torque | 0.82 Nm |
|---|---|
| Continuous torque | 0.2 Nm rated |
| Outer diameter | 43 mm (catalog outline Φ43 x 15.6 mm) |
| Axial length | 15.6 mm (catalog outline) |
| Voltage | 48 V DC link (catalog 24-70 V) |
| Mass | 54 g |
| Stator core length | 8 mm |
Who makes it
Leadshine (Shenzhen; Foothill Ranch CA office) is in Maglev's China landscape as CN040; the official store notes packaging may carry Leadtron or Leading Robotics logos. Ask about custom stator OD/thickness/winding; store FAQ says prototypes typically take 4-6 weeks.
Landed cost in the US
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://store.leadshine.com/products/fm2-04308-frameless-motorprice, rated/peak torque, mass, electrical specs, availability
- https://store.leadshine.com/cdn/shop/files/FM2_catalog.pdf?v=13189285410893735797FM2 catalog: outline diameter x length, model code (stator core length)
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
