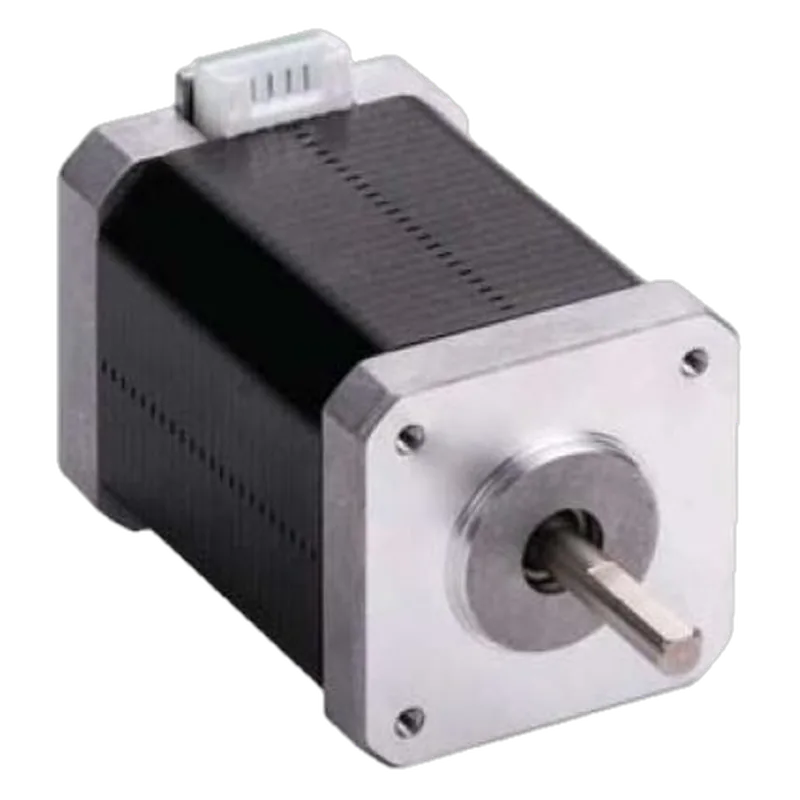

MS17HD NEMA 17 Bipolar Stepper 0.63 N·m 2.0 A 48.3 mm (MS17HD6P4200)
MOONS' · MPN MS17HD6P4200 · Maglev ID mo-moons-ms17hd6p4200
CN Maker in China, factory not confirmed unknown VERIFIED
MOONS' preferred-model 2-stack NEMA 17 stepper with side plug connector; UL-recognized OEM motor used in printers and instruments.
Specifications
| Frame size | NEMA 17 (42.3 mm) |
|---|---|
| Holding torque | 0.63 N·m (89 oz-in) typ. |
| Rated current | 2.0 A |
| Step angle | 1.8° |
| Body length | 48.3 mm max |
| Integrated driver | No |
| Phase resistance | 1.3 Ω @20°C |
| Phase inductance | 2.9 mH |
| Rotor inertia | 82 g·cm² |
| Mass | 0.36 kg |
| IP rating | IP40 |
Who makes it
MakerMOONS' Industries
Based inChina
RoleBrand owner
Shenzhen stepper makers in Maglev's directory: Stonker Motor and Wanzhida (stepper motors), Zhongling (integrated step motors). None benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | UL recognized file E465363, RoHS (MOONS' catalog) |
Equivalents from other makers
Sources
- https://shop.mev-elektronik.com/wp-content/uploads/MOONS_Hybrid_Stepper_Motors.pdfMOONS' hybrid stepper catalog (2019), pp.37-38: MS17HD spec table and dimensions
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
