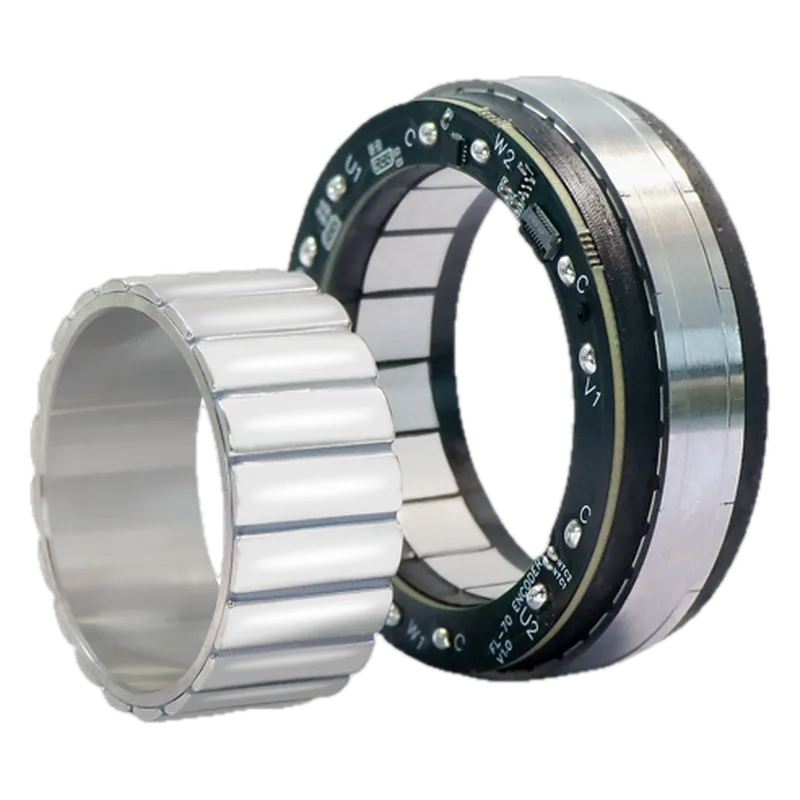

MyActuator RMD-FL-85-23-750-E Frameless Inner-Rotor Motor (absolute encoder)
MyActuator · MPN RMD-FL-85-23-750-E · Maglev ID mo-myactuator-rmd-fl-85-23-750-e
CN Maker in China, factory not confirmed unknown VERIFIED
Longer-stack 85 mm frameless inner-rotor kit with absolute sensor board, about 1.5x the torque of the FL-85-13 for larger leg and shoulder joints.
Specifications
| Peak torque | 6 Nm |
|---|---|
| Continuous torque | 2 Nm rated |
| Outer diameter | 85 mm stator OD |
| Axial length | 36.65 mm (per installation drawing) |
| Voltage | 48 V |
| Mass | 610 g |
| Rated current | 14.5 A |
| Peak current | 43.5 A |
| Torque constant | 0.14 Nm/A |
| Rotor bore | 52 mm (rotor bore per drawing) |
| Sensor | Absolute |
Who makes it
MakerMyActuator (Suzhou Micro Actuator Technology Co., Ltd.)
Based inChina
RoleBrand owner
MyActuator is in Maglev's actuator benchmark pool as CN003 (Kunshan/Suzhou, Dongguan manufacturing center, Fremont USA branch).
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.myactuator.com/fl-85-23-detailsofficial spec sheet image: installation drawing and parameters
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
