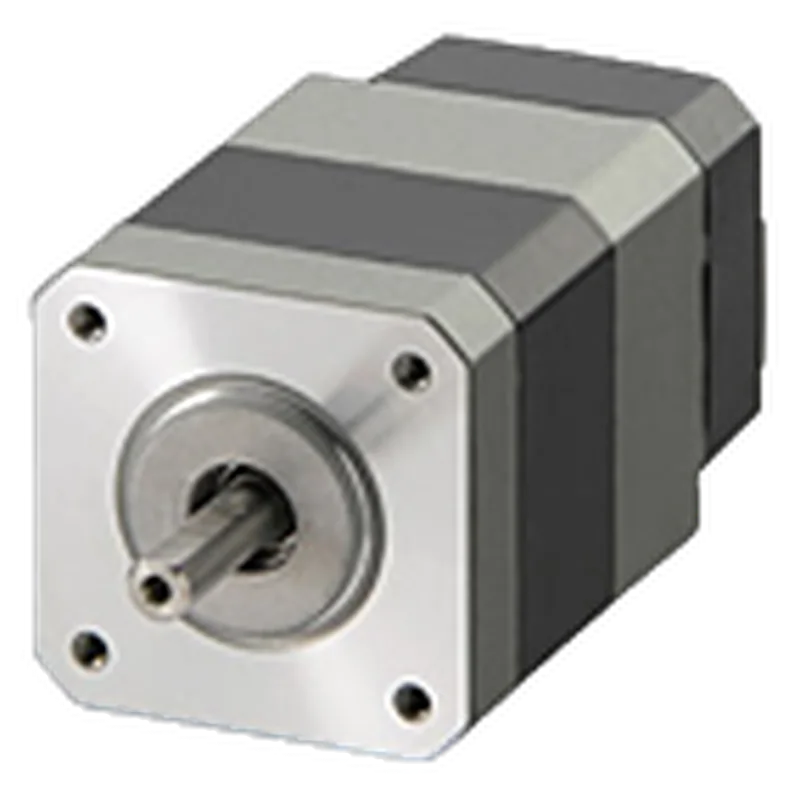

AZ Series 42 mm Stepper with Battery-Free Absolute Encoder, AC-input (AZM46AC)
Oriental Motor · MPN AZM46AC · Maglev ID mo-oriental-azm46ac
JP Maker in Japan, factory not confirmed unknown VERIFIED
42 mm closed-loop stepper with mechanical (battery-free) absolute encoder; motor only, needs an AZ Series driver such as AZD-AEP/AZD-CEP.
Specifications
| Frame size | 42 mm (1.65 in.) |
|---|---|
| Holding torque | 0.30 N·m (42 oz-in); 0.15 N·m at standstill |
| Rated current | unknown |
| Resolution | 0.36°/pulse at 1000 P/R setting (basic step angle not listed) |
| Motor length | 70 mm (2.76 in.) |
| Integrated driver | No (requires AZ Series driver, e.g. AZD-AEP / AZD-CEP, $793 each) |
| Encoder | Mechanical absolute (ABZO), battery-free |
| Driver input | AC input version |
Who makes it
MakerOriental Motor
Based inJapan
RoleBrand owner
Shenzhen stepper makers in Maglev's directory: Stonker Motor and Wanzhida (stepper motors), Zhongling (integrated step motors). None benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://catalog.orientalmotor.com/item/az-series-absolute-encoder-stepper-motors/shop-az-series-absolute-encoder-stepper-motors/azm46acweb price $372.00, holding torque, length, encoder, compatible drivers and prices, 3D CAD viewer, brochure/manual links
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
