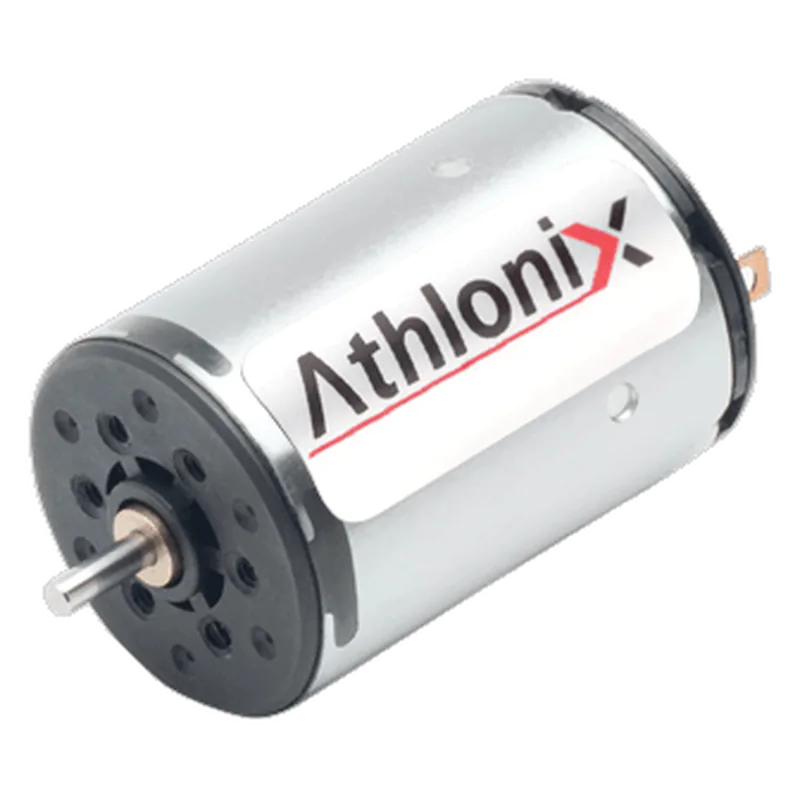

Portescap 16DCT Athlonix coreless DC motor, 12 V (coil 211E)
Portescap · Maglev ID mo-portescap-16dct-26p1-211e
US Maker in United States, factory not confirmed unknown VERIFIED
16 mm coreless brushed DC motor with precious-metal commutation; marketed for grippers and handheld tools.
Specifications
| Diameter | 16 mm |
|---|---|
| Nominal voltage | 12 V |
| Max continuous torque | 5.27 mNm |
| No-load speed | 7,968 rpm |
| Output power | 4.1 W |
| Weight | 23 g |
| Body length (drawing) | 25.5 mm |
| Stall torque | 12.33 mNm |
Who makes it
MakerPortescap
Based inUnited States
RoleBrand owner
Shenzhen hollow-cup and BLDC makers in Maglev's directory (RBT Motor, Constar, Hengdrive, Wanzhida) list custom motors; none benchmarked against this part.
Landed cost in the US
CN
41.9%
TW
10%
VN
16.9%
IN
14.4%
JP
12.5%
KR
12.5%
DE
10%
MX
14.4%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.10.40.40 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Full orderable suffix (execution/shaft) per datasheet pattern '16DCT 26P1 ####.1'; not confirmed on a store page. |
Equivalents from other makers
Sources
- https://datasheet.sic-components.com/specifications_16dct_pm.pdfPortescap 16DCT 26P1/P2 datasheet (maker document, third-party mirror): 211E column
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
