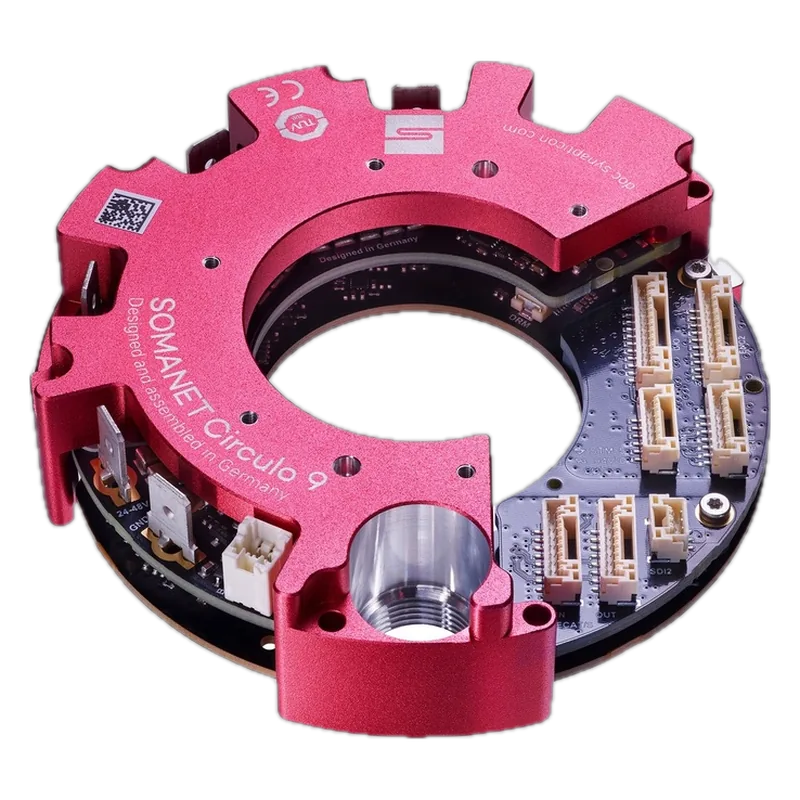

Synapticon SOMANET Circulo 9 Ring Servo Drive
Synapticon · MPN CR9-48-60-ECNN · Maglev ID mo-synapticon-circulo-9
DE Maker in Germany, factory not confirmed unknown VERIFIED
Larger Circulo ring drive (48 V, 60 A rms) for big hollow joints, EtherCAT with optional integrated dual absolute encoders.
Specifications
| Supply voltage | 48 V |
|---|---|
| Continuous current | unknown |
| Rating | 60 A rms |
| Interface | EtherCAT |
| Feedback | Optional integrated magnetic absolute encoders: Pos 1, Pos 1+2 (19-20 bit), or Pos 1 + external |
| Functional safety | STO+SBC via IO; Safe Fieldbus / Safe Motion options |
Who makes it
MakerSynapticon GmbH
Based inGermany
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://catalog.synapticon.com/shop/somanet-circulo-9-2735ordering ref, rating, encoder options, RFQ only
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
