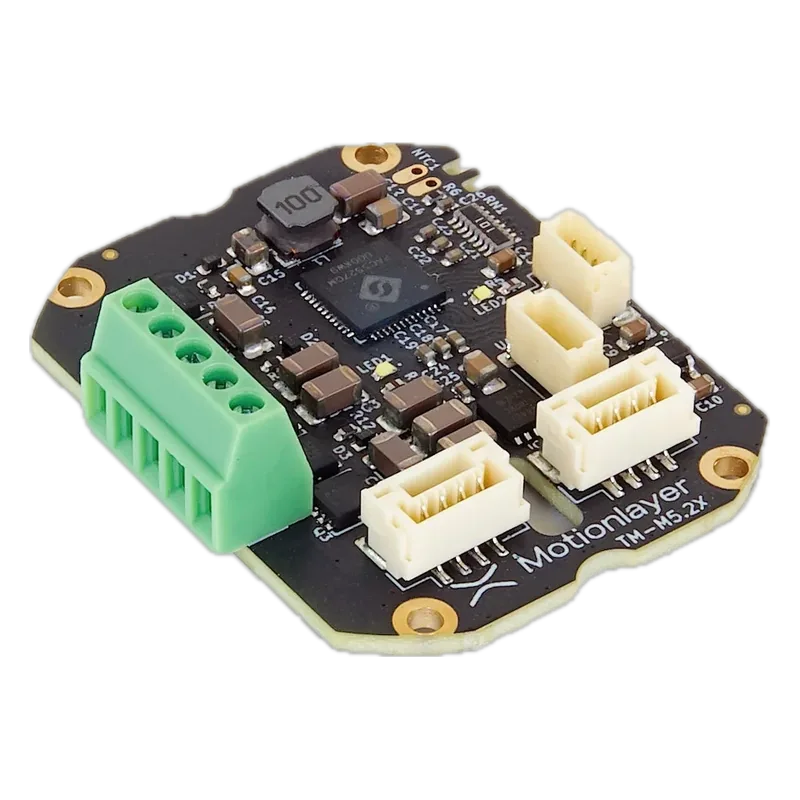

Tinymovr X5 Dual-Encoder FOC Controller
Tinymovr · MPN X5 · Maglev ID mo-tinymovr-x5
GR Maker in GR, factory not confirmed unknown VERIFIED
Back-of-motor FOC controller with two onboard absolute sensors (motor + geared output, vernier), sized for GIM3505/GIM3510 class actuators.
Specifications
| Supply voltage | 12-38 V |
|---|---|
| Continuous current | 6 A |
| Peak current | unknown |
| Interface | CAN (2x), UART, SPI |
| Feedback | Dual onboard absolute angle sensors (geared second encoder, vernier positioning) |
| Size | 38 x 30 mm |
Who makes it
MakerTinymovr (MotionLayer P.C.)
Based inGR
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8504.40.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://tinymovr.com/products/x5-motor-controllerspecs, price, stock
- https://tinymovr.readthedocs.io/en/latest/hardware/overview.htmlX5.1 geared second encoder, M5.1 electricals
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
