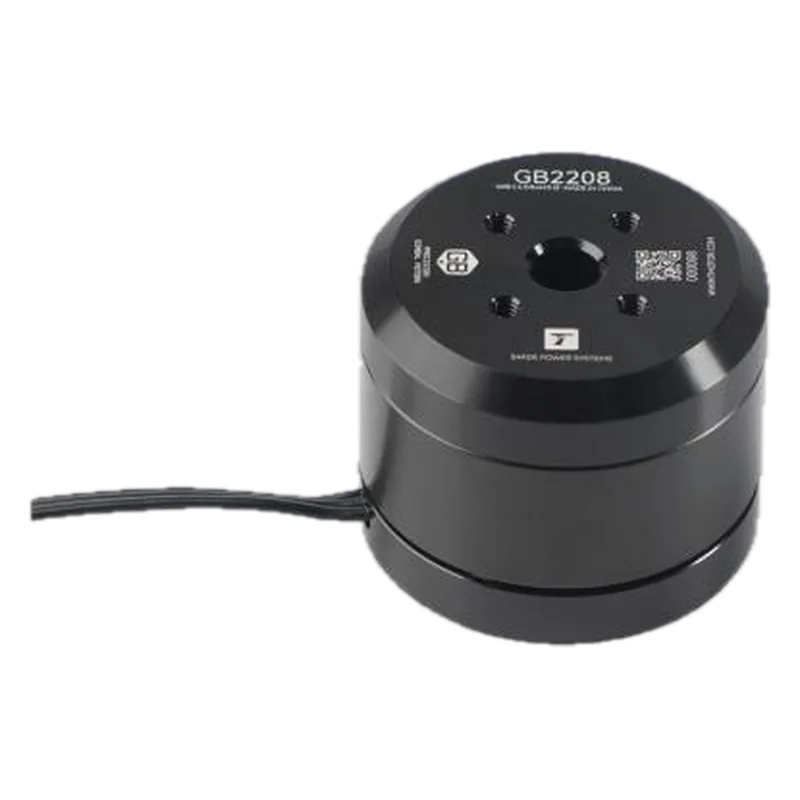

T-Motor GB2208 KV128 Gimbal Motor
T-Motor · MPN GB2208 KV128 · Maglev ID mo-tmotor-gb2208-kv128
CN Maker in China, factory not confirmed unknown VERIFIED
27.5 mm, 39.5 g small gimbal outrunner for 3-4S action-cam gimbals and tiny direct-drive pan/tilt.
Specifications
| KV | 128 |
|---|---|
| Rated voltage | 3-4S LiPo |
| Torque | 0.07 Nm (listed as 'Motor's Torsion'; peak vs rated not stated) |
| Outer diameter | 27.5 mm (ø27.5 x 23 mm) |
| Mass | 39.5 g incl. cable |
| Height | 23 mm |
| Configuration | 12N14P |
| Internal resistance | 14.4 Ω |
Who makes it
MakerT-Motor (Jiangxi Xintuo)
Based inChina
RoleBrand owner
CubeMars and T-MOTOR are one manufacturer group (Sanrui Intelligent, Nanchang, Jiangxi), already in Maglev's actuator benchmark pool as CN002; contact on file is [email protected]. Ask about custom windings and which country each part is made in.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | unknown |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | voltage_v num is 4S full charge (16.8 V); page states only 3-4S. |
Sources
- https://store.tmotor.com/goods-447-GB2208.htmlspecs + price $25.90
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
