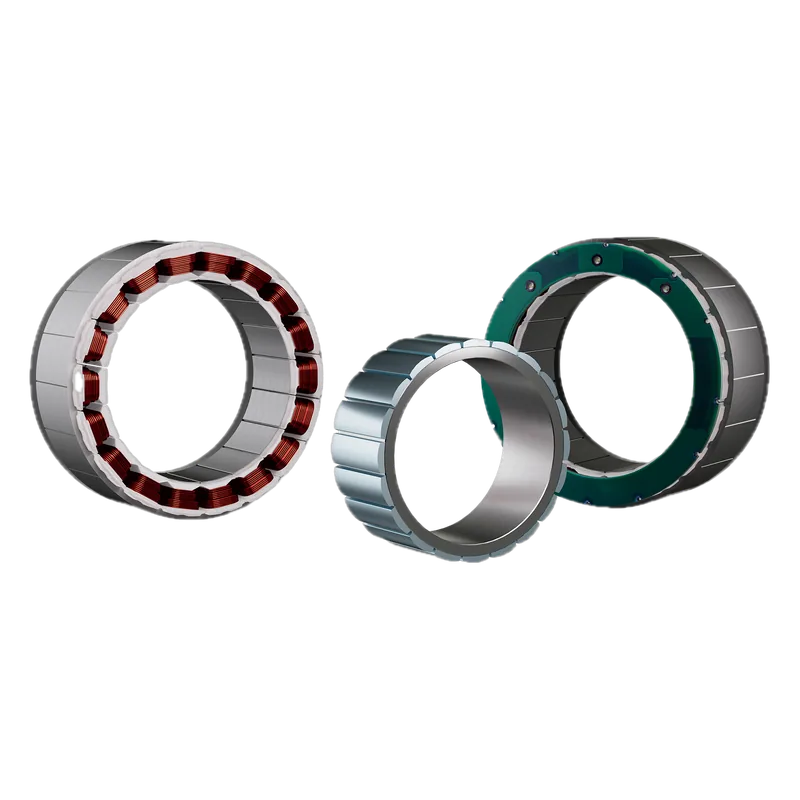

Veichi FT1-075G30-R3020 Frameless Motor (48 V)
Veichi · MPN FT1-075G30-R3020-□□□ (sensor/lead options) · Maglev ID mo-veichi-ft1-075g30
CN Maker in China, factory not confirmed unknown VERIFIED
75 mm, 48 V FT1-series frameless kit from Suzhou Veichi (listed drive maker); suffix selects Hall/thermal sensor and lead type.
Specifications
| Max torque | 4.3 N·m |
|---|---|
| Rated torque | 1.43 N·m rated |
| Stator OD | 75 mm |
| Overall height | ≤30 mm overall height (from model code) |
| Rated voltage | 48 V |
| Weight (blank in catalog) | unknown |
| Rotor ID | 42 mm |
| Rated power | 300 W |
| Rated current | 9 A |
| Rated speed | 2000 rpm |
Who makes it
MakerSuzhou Veichi Electric Technology Co., Ltd.
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Sources
- https://www.veichi.cn/product/jzjx/Copy_1219/Copy_1295/Copy_1304/337.htmlVeichi FT1 product page (parameters tab empty; catalog under downloads)
- https://www.veichi.cn/Uploads/20240911042918_363263.pdfFT1无框电机画册-A1.2 2024.5.15 catalog: naming rule, per-model tables
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
