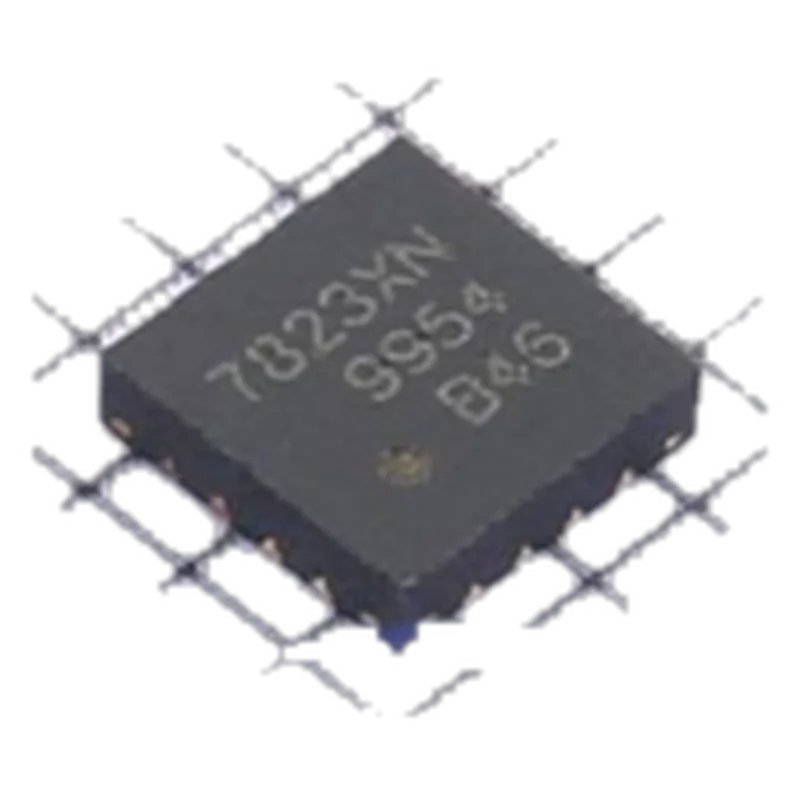

Conntek KTH7823 16-bit Hall Magnetic Encoder IC (SSI/PWM)
Conntek · MPN KTH7823-X-N-QN16 · Maglev ID ac-conntek-kth7823-qn16
CN Maker in China, factory not confirmed unknown VERIFIED
Sibling of the KTH7812 that swaps UVW for SSI and 14-bit PWM output: 16-bit SPI, ABZ to 4096 steps, 120,000 rpm; QFN-16 or SOP-8.
Specifications
| Resolution | 16-bit absolute |
|---|---|
| Accuracy | INL < ±0.35° (datasheet feature list) |
| Max speed | 120,000 rpm |
| Interface | SPI; SSI; ABZ (4–4096 steps/rev); PWM (14-bit) |
| Form | IC, QFN-16 3×3 mm (SOP-8 also offered) |
| Sensing | Hall |
| Supply | 3.3 V or 5 V (3.0–5.5 V) |
| Bore | n/a |
| Latency | data updated every 1 µs |
| Operating temp | -40 to +105 °C (datasheet) |
Who makes it
MakerConntek
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
37.5%
TW
10%
VN
12.5%
IN
10%
JP
12.5%
KR
12.5%
DE
10%
MX
10%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 9031.80.80.85 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Works with
Sources
- https://www.lcsc.com/product-detail/C20623409.htmlprice breaks, stock, package, supply range (LCSC listing / product API)
- https://datasheet.lcsc.com/datasheet/pdf/a15b4232406a67e6912b935c9e8846aa.pdf?productCode=C20623409datasheet: Chinese datasheet: 16-bit, INL <±0.35°, 120,000 rpm, SPI/SSI/ABZ/PWM
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
