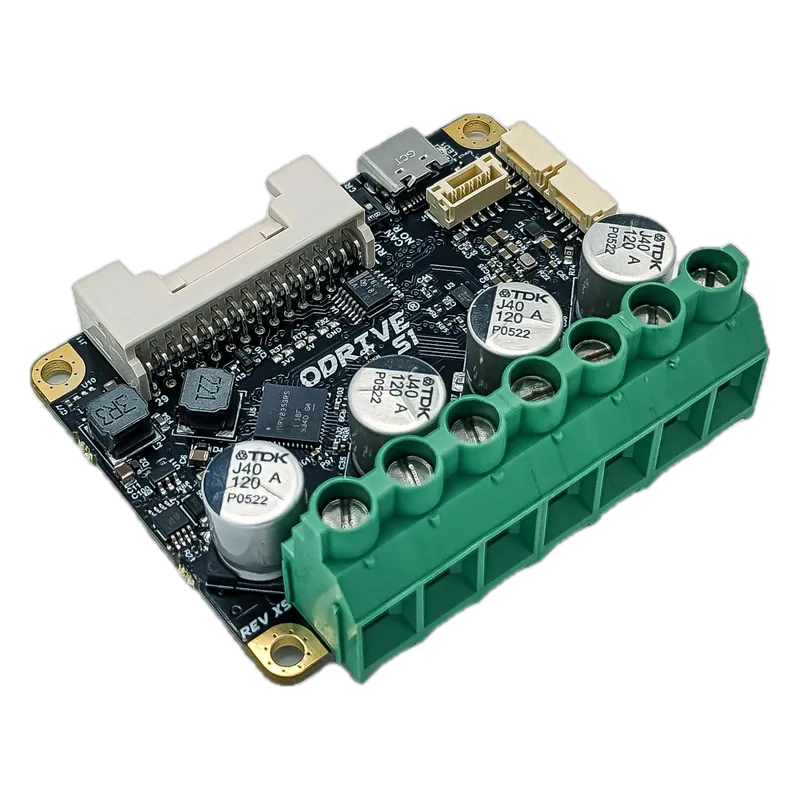

ODrive S1 Single-Axis BLDC Controller
Photo: shop.odriverobotics.com
Datasheet CAD / STEP Maker's page This part as JSONThis part as Markdown

ODrive S1 Single-Axis BLDC Controller

ODrive Robotics · MPN ODS1-ST · Maglev ID mo-odrive-s1
US Maker in United States, factory not confirmed unknown VERIFIED

Single-axis FOC servo controller (2 kW continuous) with onboard encoder, CAN/USB/UART and brake-resistor support; the default pick for hobby-to-pro robot joints and wheels.

Specifications

Bus voltage12-50.5 V (16-48 V typ.)
Continuous current40 A with heat spreader plate (20 A free air)
Peak current40-80 A, derated with bus voltage
InterfaceUSB, CAN / CAN-FD, UART, analog, PWM, STEP/DIR
FeedbackOnboard magnetic encoder, quadrature, Hall, RS485 absolute, SPI
Continuous power2 kW
Mass35 g
Dimensions66 x 50 mm
SKUsODS1-ST (screw terminals), ODS1 (solder pads)

Who makes it

MakerODrive Robotics
Based inUnited States
RoleBrand owner

Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.

Landed cost in the US

CN 37.5%
TW 10%
VN 12.5%
IN 10%
JP 12.5%
KR 12.5%
DE 10%
MX 10%
US 0%

Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.

Loading duty data…

Compliance

HTS classification8504.40.40.00 typical, not a ruling
NDAAunknown
Blue UASunknown
FCCn/a

How we source tariff and compliance data
