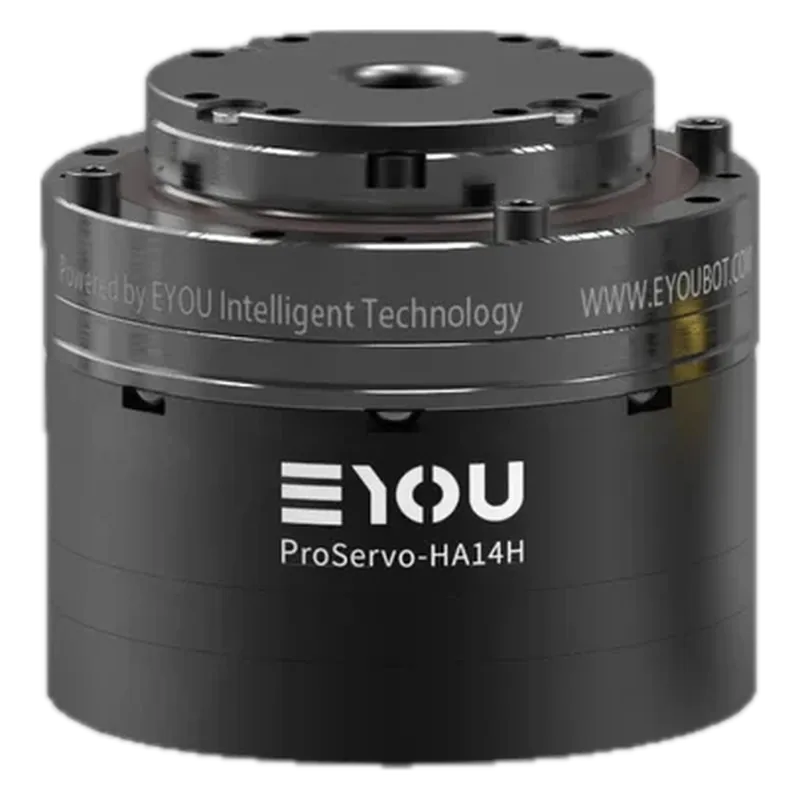

EYOU PHA14H-101-C Harmonic Joint Module
EYOU · MPN PHA14H-101-C · Maglev ID ac-eyou-pha14h-101-c
CN Maker in China, factory not confirmed unknown REPORTED
Hollow-shaft harmonic joint module, 101:1, with built-in driver and dual 16-bit absolute encoders (645 g), for cobot and humanoid-arm joints.
Specifications
| Peak torque | 34 N·m |
|---|---|
| Rated torque | 9.6 N·m at 2000 rpm input (average load torque 13.5 N·m) |
| Gear ratio | 101:1 harmonic |
| Voltage | 48 VDC rated (24-48 V) |
| Mass | 645 g |
| Interface | CAN FD, CANopen (PP/PV/PT/CSP/CSV) |
Who makes it
MakerEYOU (一盈)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | Specs, price and stock from distributor aifitlab.com (variant shows available). |
Equivalents from other makers
Sources
- https://aifitlab.com/products/eyou-pha14h-101-c-motorspec table + price + availability (distributor; product JSON https://aifitlab.com/products/eyou-pha14h-101-c-motor.js)
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
