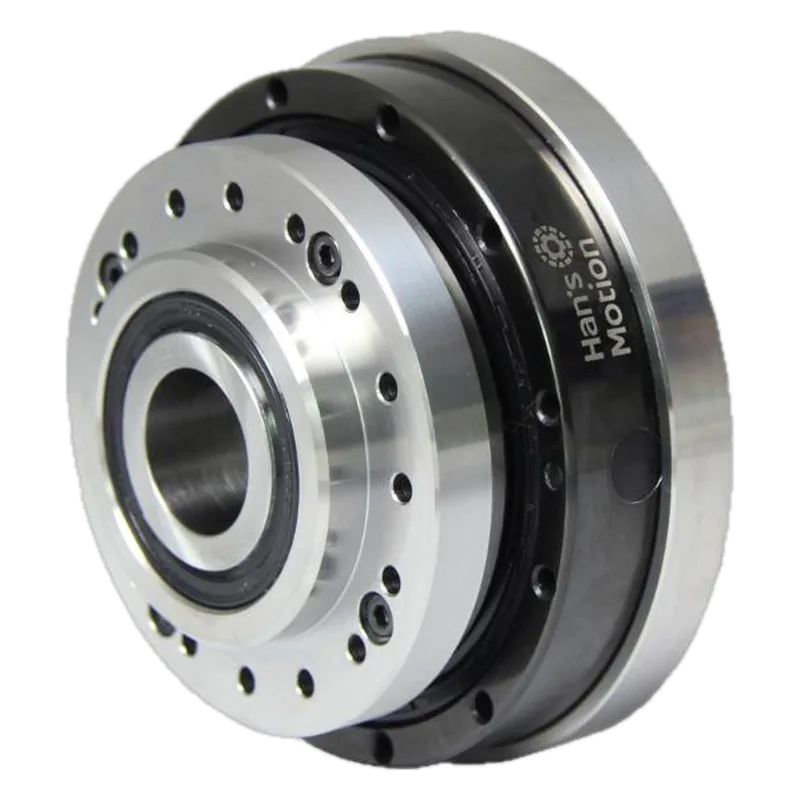

Han's Motion HMHG-17-100-I Hollow Harmonic Reducer
Han's Motion · Maglev ID ac-hansmotion-hmhg-17-100-i
CN Maker in China, factory not confirmed unknown REPORTED
Han's Motion HMHG-I hollow-shaft, fully sealed harmonic unit with internal support bearing, size 17, ratio 100; 31 N·m rated at 2000 rpm, 10 arcsec backlash. Order code not published by the maker; size and ratio as listed by a distributor.
Specifications
| Ratio | 100 (series offers 50/80/100/120 by size) |
|---|---|
| Rated torque at 2000 rpm input | 31 N·m |
| Start/stop peak torque | 70 N·m (momentary max 143 N·m) |
| Backlash | 10 arcsec |
| Outer diameter | unknown |
| Hollow shaft | Yes (large hollow wave generator, per maker page) |
| Transmission accuracy | 90 arcsec |
Who makes it
MakerShenzhen Han's Motion Technology Co., Ltd. (Han's Laser group)
Based inChina
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
Loading duty data…
Compliance
| HTS classification | 8483.40.50 |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
| Notes | hansmotion.com returns 403 (ICP filing). Specs from distributor table. MPN format inferred from listing model 'HMHG-17-I' plus maker naming 'HMHS-20-XX-I'; confirm exact order code. Distributor series price US$251-573 not assignable to a SKU. |
Sources
- https://yijiaang.en.made-in-china.com/product/eAoRyLkbHEVp/China-Versatile-Robotic-Joints-with-Integrated-Harmonic-Reduction-Technology.htmldistributor listing (Suzhou Yijiaang Automation, trading co.) with HMHG-I rating table; MOQ 1; lead time 15 workdays off-season / 1 month peak
- http://web.archive.org/web/20240225145626/http://www.hansmotion.com/show-62-7-1.htmlHan's Motion HMHG-I series page (Wayback 2024-02-25): hollow shaft, internal support bearing, sealed; model list HMHS-14/17/20/25/32-XX-I
Record confidence: REPORTED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
