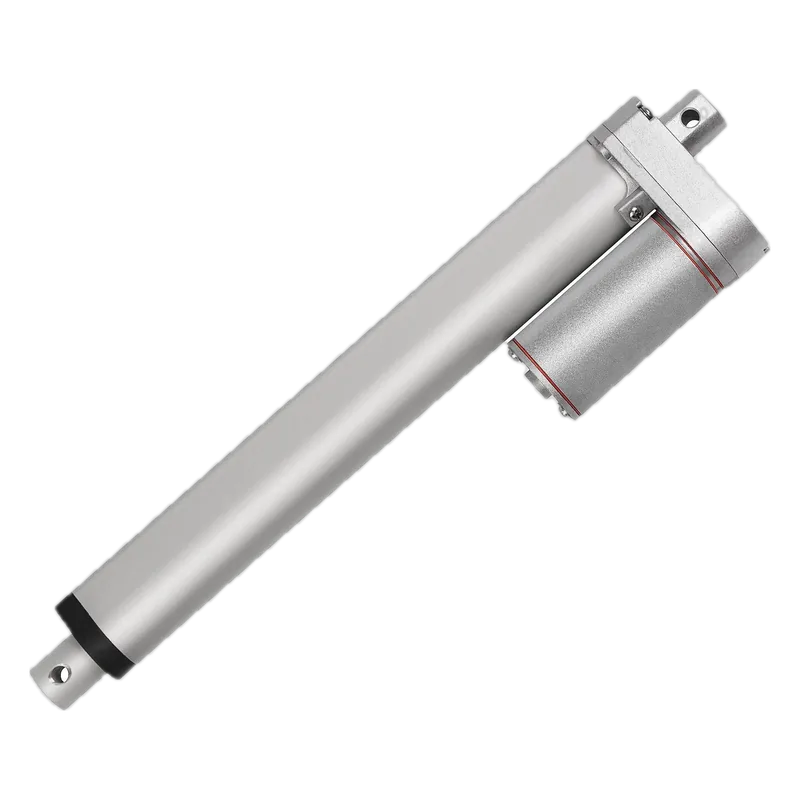

Progressive Automations PA-14 Mini Linear Actuator (12 V, 35 lbs)
Progressive Automations · MPN PA-14 (configurable: stroke 1-40 in, 35/50/150 lbs, 12/24 V, optional feedback) · Maglev ID ac-progressive-pa-14
CA Maker in Canada, factory not confirmed unknown VERIFIED
Configurable aluminium-housing mini actuator (IP54) for furniture, hatches and light automation; PA-01 is its newer successor.
Specifications
| Stroke | 1-40 in options (25-1016 mm); price shown for default 1 in |
|---|---|
| Force | 35 lbs (156 N) dynamic; 50 and 150 lbs options |
| No-load speed | 2.00 in/s (51 mm/s) @ 35 lbs, 12 V; 1.38 in/s full load |
| Voltage | 12 VDC (24 VDC option) |
| Feedback | Optional |
Who makes it
MakerProgressive Automations Inc.
Based inCanada
RoleBrand owner
Need a different shaft, connector, firmware or enclosure, or a price at 1,000 units? Maglev takes the catalog part to the factory and comes back with a custom version and one fixed price.
Landed cost in the US
CN
41.5%
TW
10%
VN
16.5%
IN
14%
JP
12.5%
KR
12.5%
DE
10%
MX
14%
US
0%
Total US duty on this part by where it is made (2026-10-29). Mexico shown before USMCA preference; qualifying goods enter duty free. Your factory choice, not the shipping port, sets the origin.
Loading duty data…
Compliance
| HTS classification | 8501.31.40.00 typical, not a ruling |
|---|---|
| NDAA | unknown |
| Blue UAS | unknown |
| FCC | n/a |
Equivalents from other makers
Sources
- https://www.progressiveautomations.com/products/pa-14price tiers + force/speed table
Record confidence: VERIFIED. VERIFIED means the maker's own documents; REPORTED means a credible third party; UNVERIFIED means a single weak source. Anything we could not confirm says unknown.
